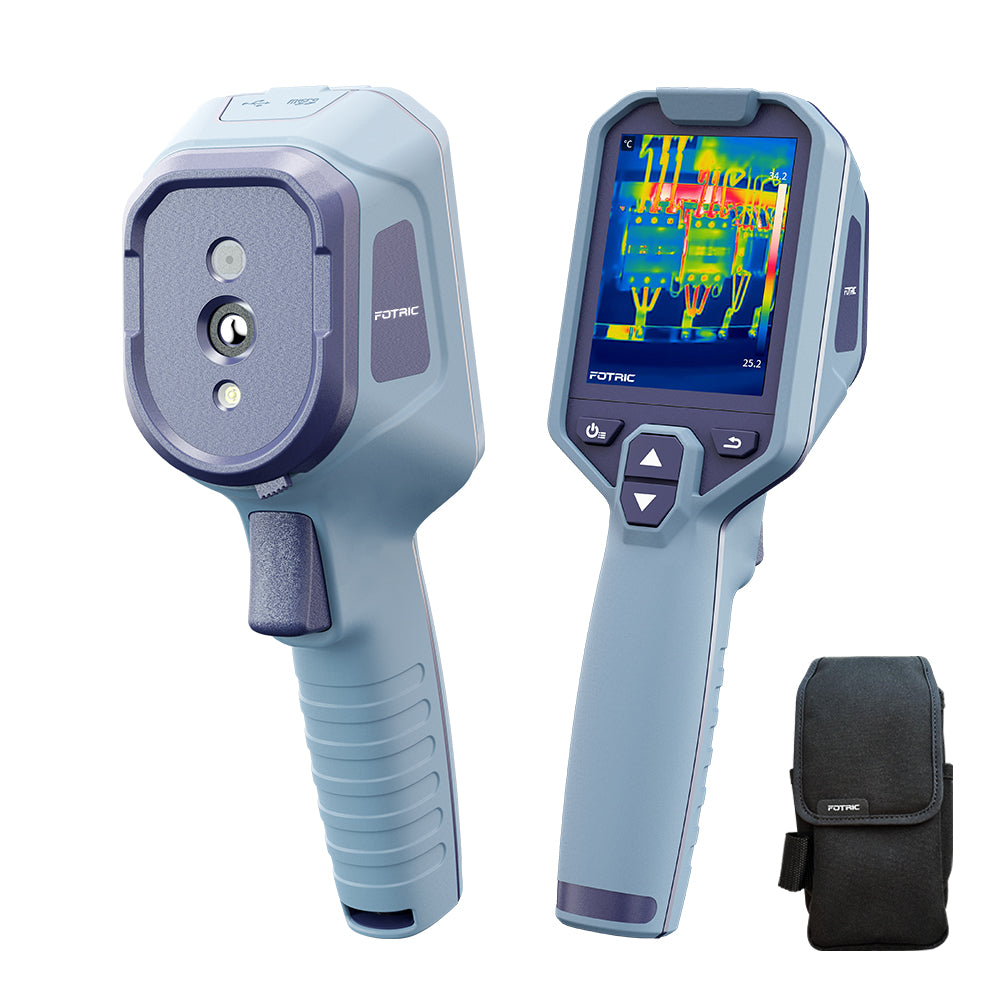

320x240 IR Resolution, 3.2" Touchscreen 2MP Visible Camera, 50°×38° FOV, -4°F to 842°F, Thermal Imager for Building, Electrical, HVAC, Mechanical, Home Inspections
Precio habitual
$469.99
Precio de venta
$469.99
Precio habitual
Envío calculado al finalizar la compra.
Quantity:
American Express
Discover
Mastercard
PayPal
Visa
Klarna
Description

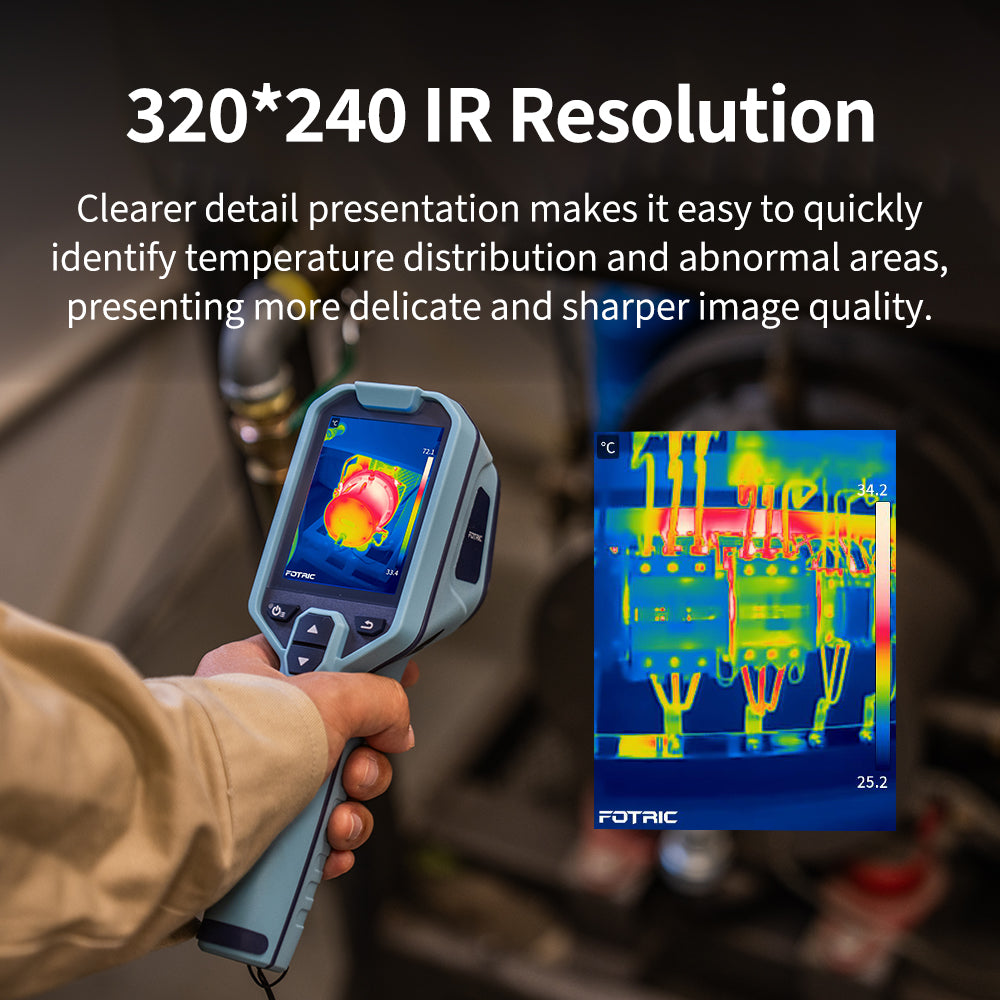

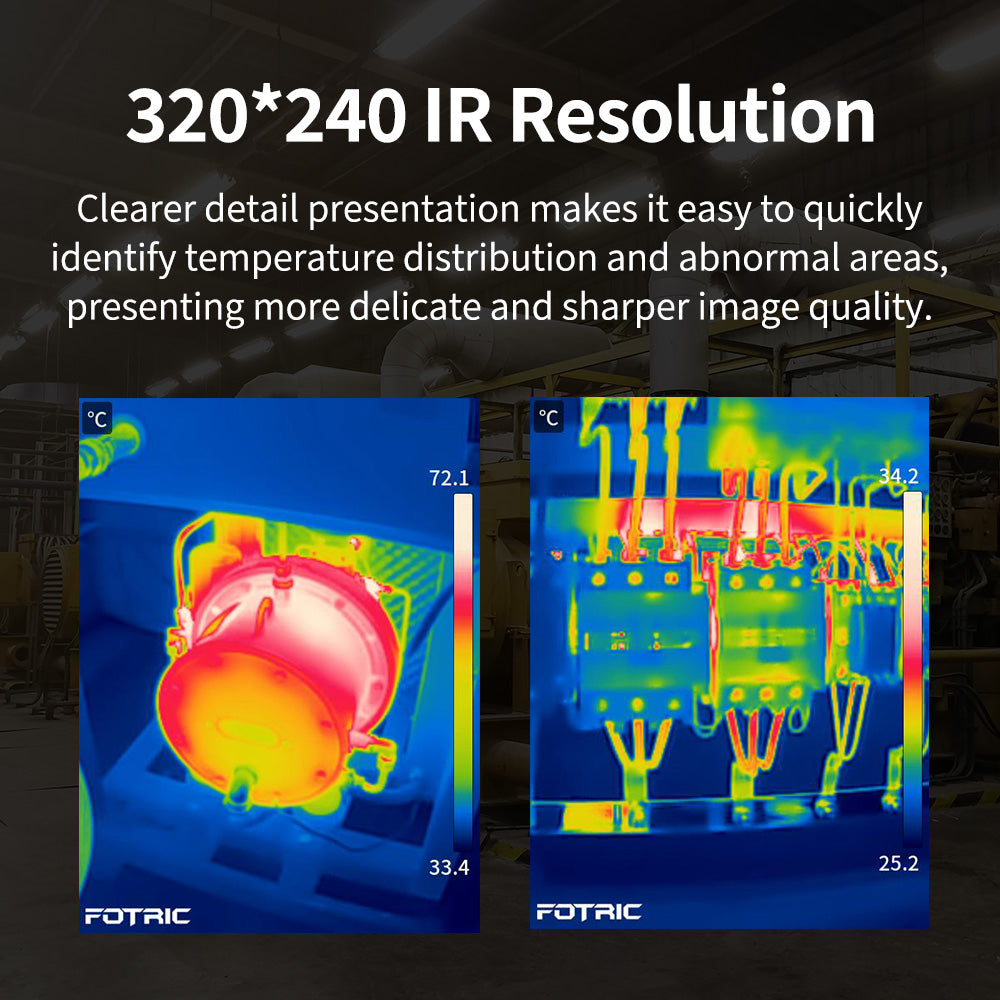

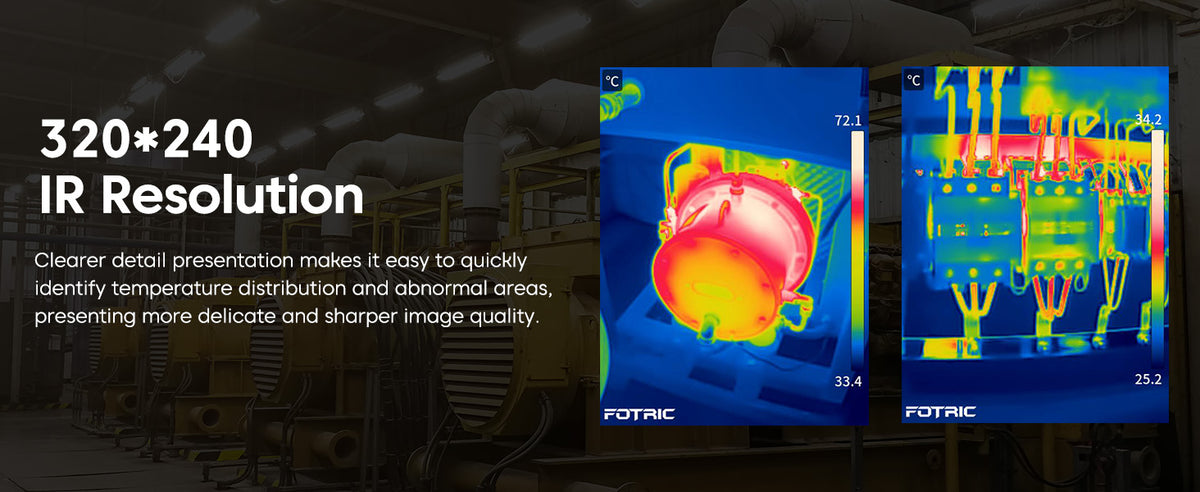

  • High-Resolution Thermal Imaging & Precision Accuracy: Equipped with a ceramic-packaged detector and 320×240 true IR resolution, delivering <30mK NETD and 30Hz frame rate for crisp, real-time imaging. Dual spans (-4~248°F and 32~842°F) with ±3.6°F or 2% accuracy provide dependable diagnostics for electrical panels, motor housings, bearing assemblies, and process piping.

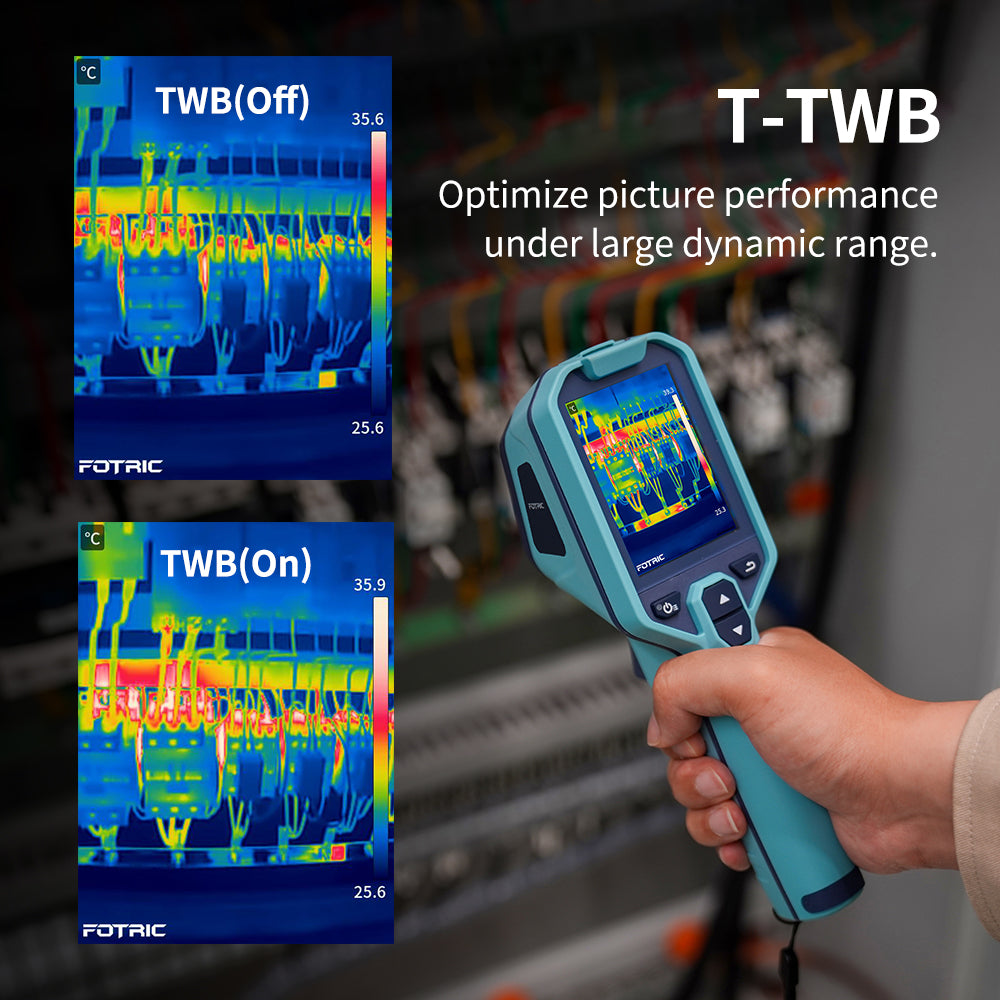

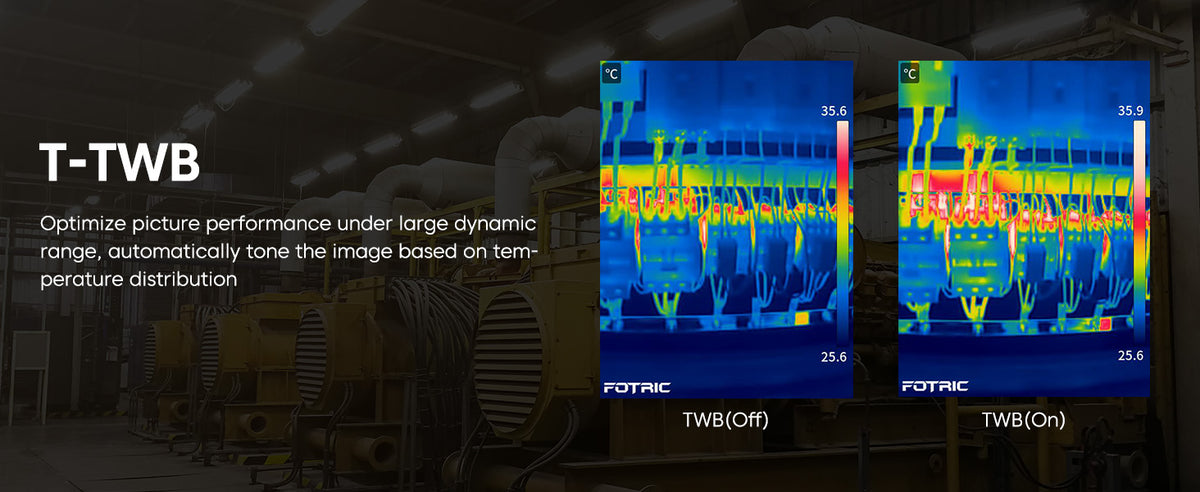

  • Smart Analysis & Instant Fault Detection: Automatic hot/cold spot tracking instantly flags extremes within the scene, paired with customizable visual color alarms. Exclusive T-TWB histogram optimization reveals subtle thermal gradients across wide dynamic ranges, while manual span adjustment catches early bearing friction, refrigerant leaks, or insulation breakdown before costly failures occur.

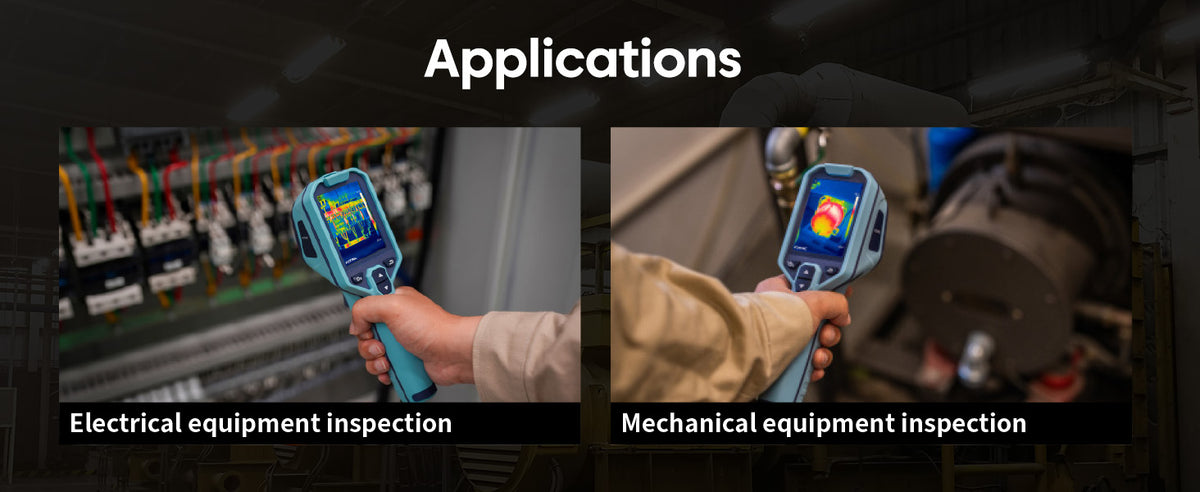

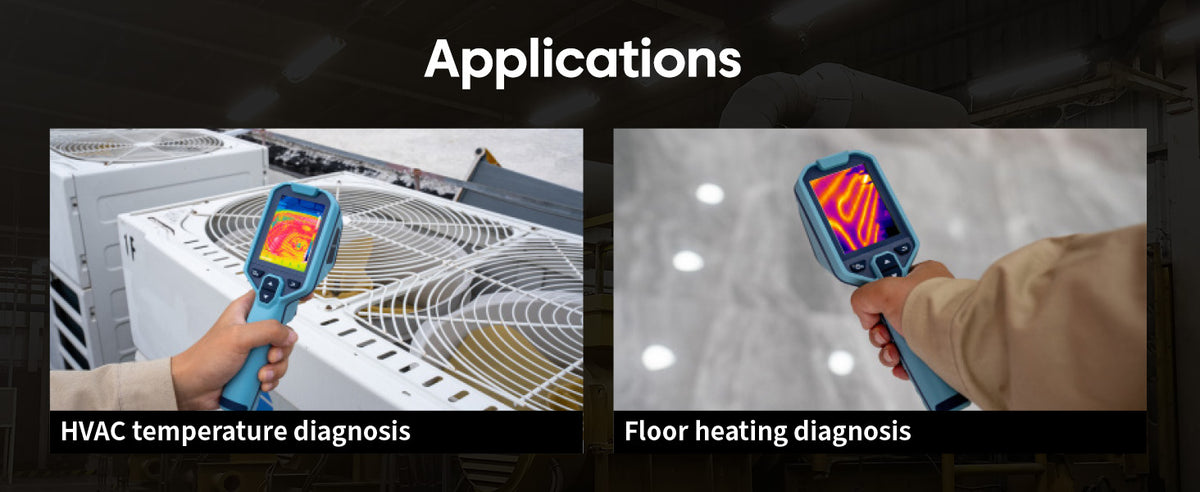

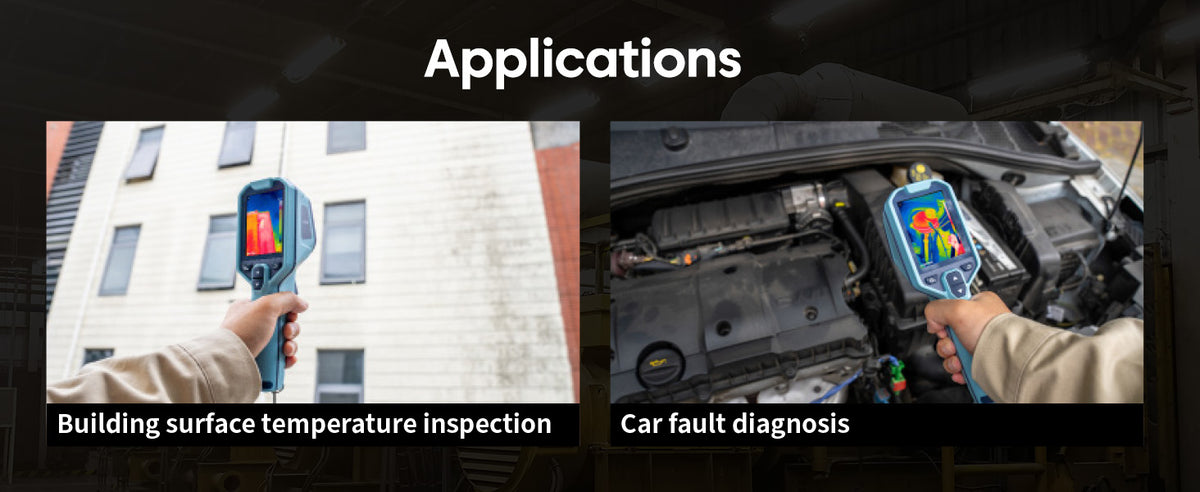

  • Versatile 6-in-1 Application Coverage: Engineered for multi-scenario inspections including Electrical (overloaded circuits, corroded contacts), Mechanical (bearing wear, pump/fan alignment), Building (wall seepage, missing insulation), Automotive (engine heat maps, brake performance, AC lines), HVAC (condenser blockages, duct leaks), and Floor Heating (pipe layout tracing, clogs, uneven heating).

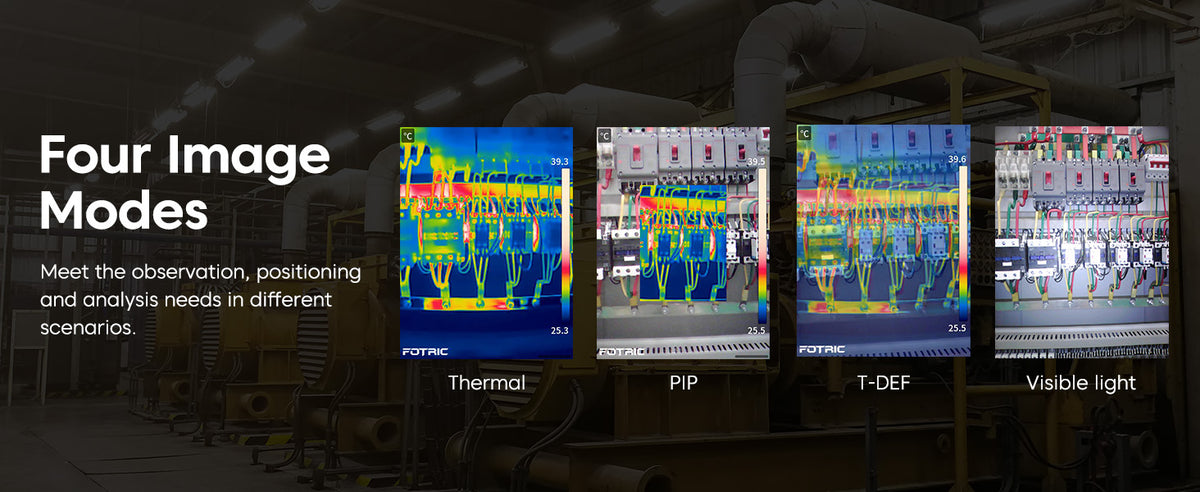

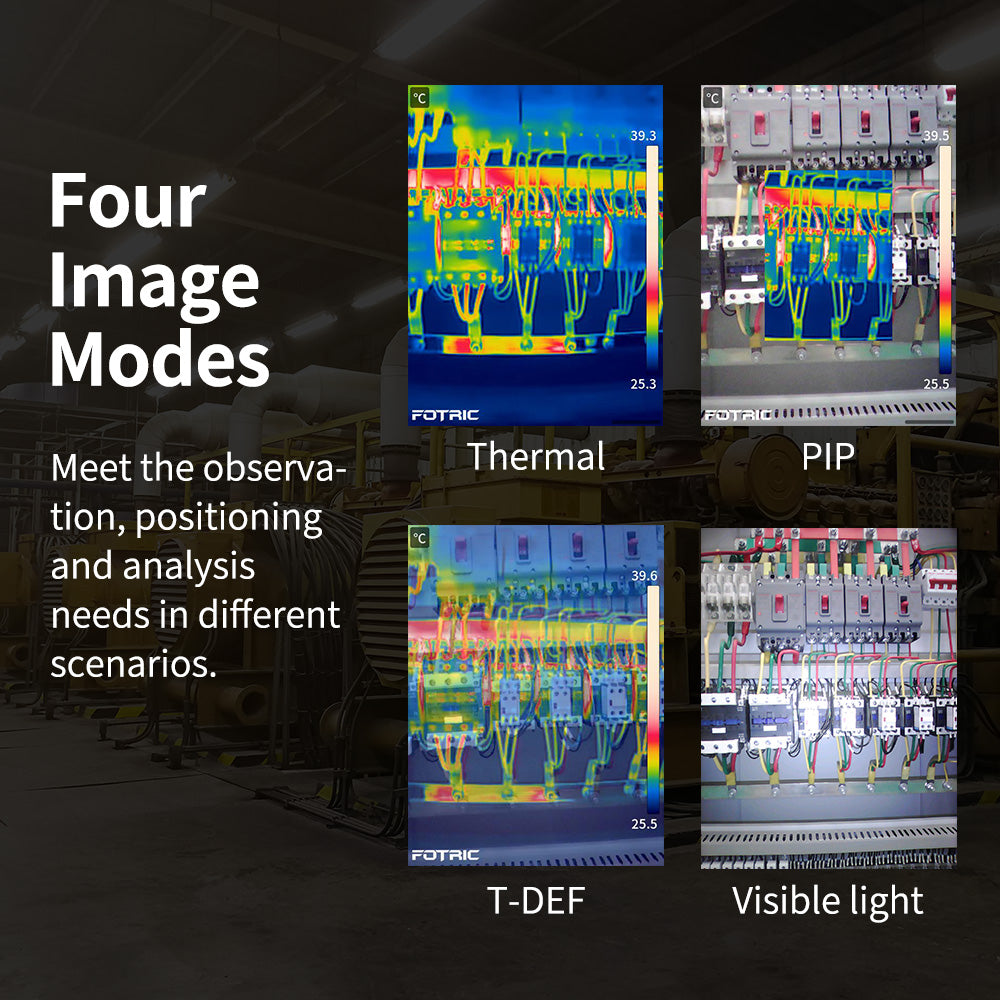

  • 4 Visual Image Modes with T-DEF Fusion: Choose from Thermal, Visible Light, Picture-in-Picture (PIP), or T-DEF blend mode with 0–100% adjustable opacity. Accurately overlays thermal heatmaps onto sharp optical details to read breaker labels, wire tags, and conduit markings without guesswork.

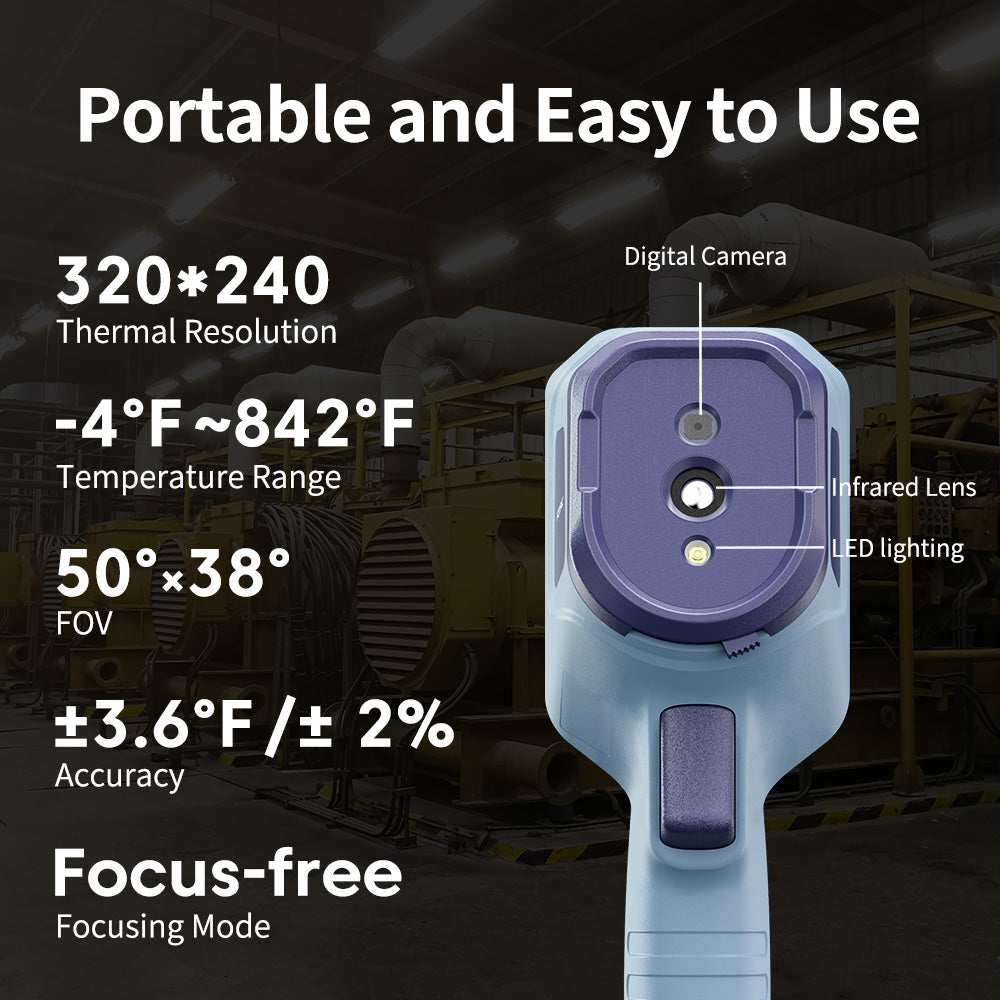

  • Lightweight, Focus-Free & Field-Rugged: Weighs just 430g with a focus-free lens for immediate point-and-shoot operation. Engineered with IP54 water/dust resistance, 2-meter drop protection, and 6.5+ hours of continuous runtime with USB-C fast charging support.
  • Full Radiometric Storage & Software Support: Includes a 32GB TF card storing thousands of radiometric captures, supported by free AnalyzIR PC analytical software for comprehensive data reporting. Backed by a full 1-year manufacturer warranty.
Order today
--
Ready by
--
Est. delivery
--

Package Contents

  • Main unit 1 ×
  • USB Type-C to USB cable 1 ×
  • 32GB TF card 1 ×
  • Quick start guide 1 ×
  • Color box 1 ×
  • Portable Soft Bag 1 ×

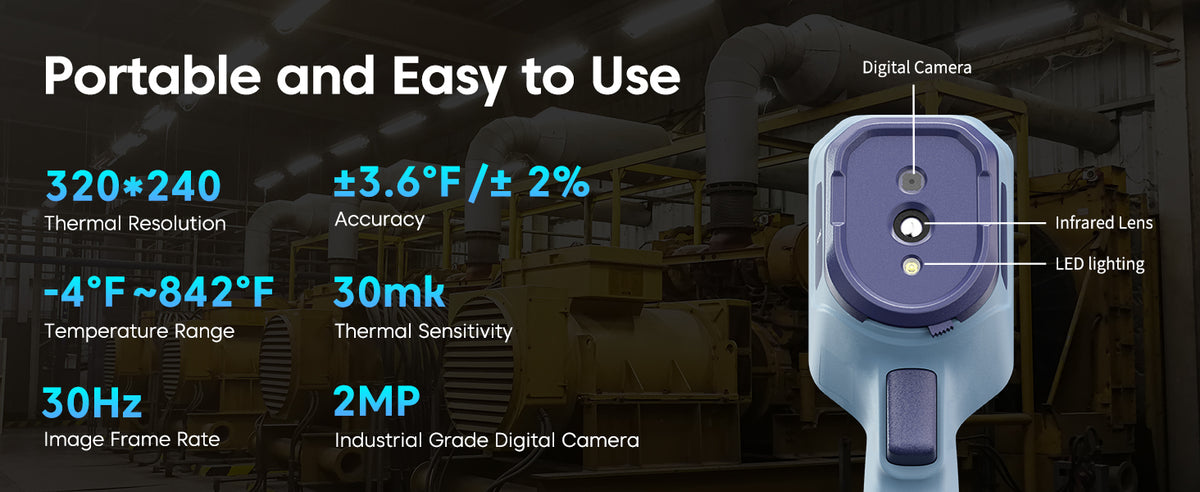

Specifications

Form factorHandheld pistol-grip
Infrared resolution (native)240 × 320 (portrait)
Thermal sensitivity (NETD @ 30°C)<30 mK
Image frame rate30 Hz
Stock lensL50
Field of view (FOV)38° × 50°
Spatial resolution (IFOV)2.76 mrad
Focusing methodFocus-free
Minimum imaging distance0.3 m
Temperature measurement range−20 ~ 450°C
Accuracy±2°C or 2%, whichever is greater (ambient 15–35°C, target >0°C, at calibration distance)
Measurement spotsCenter point only
Measurement boxes / areasCenter frame only
Display3.2" IPS LCD, 640 × 480
Digital (visible) camera2 MP industrial
Protection ratingIP54
Weight430 g
Continuous operating time≥ 6.5 h
