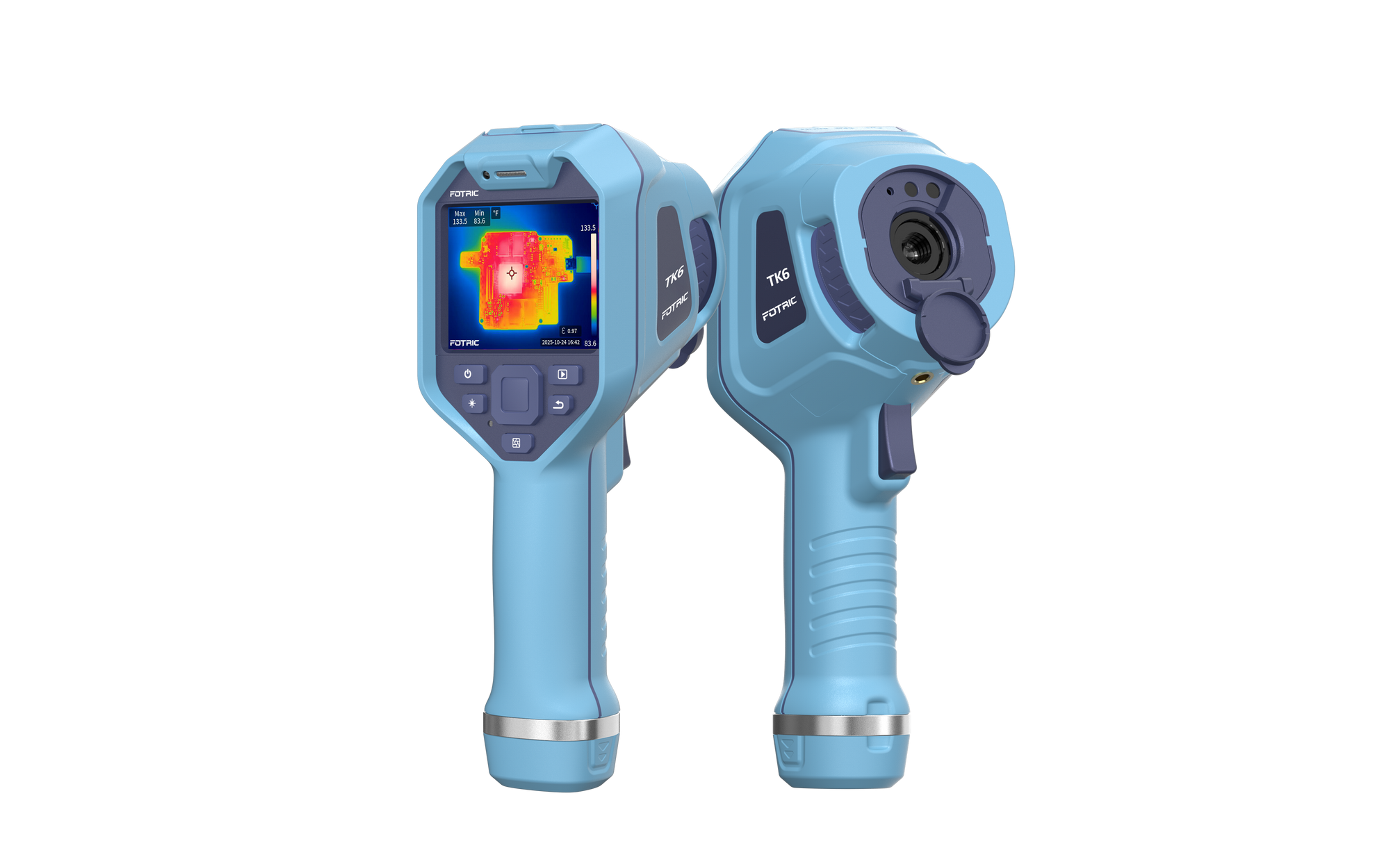

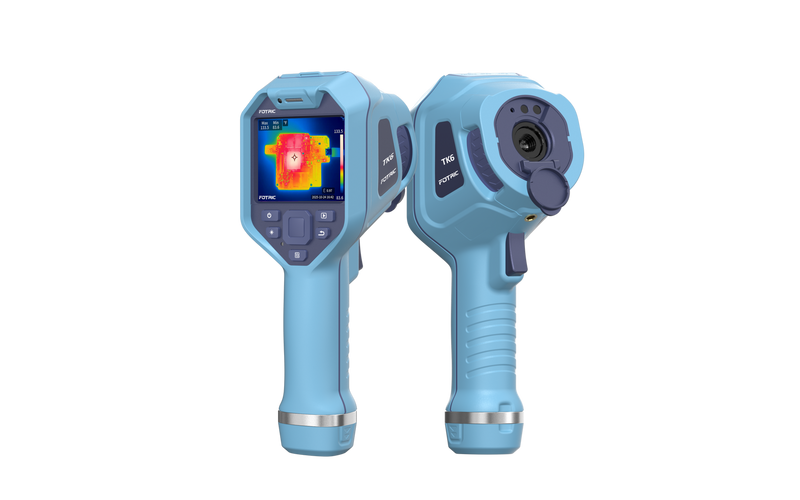

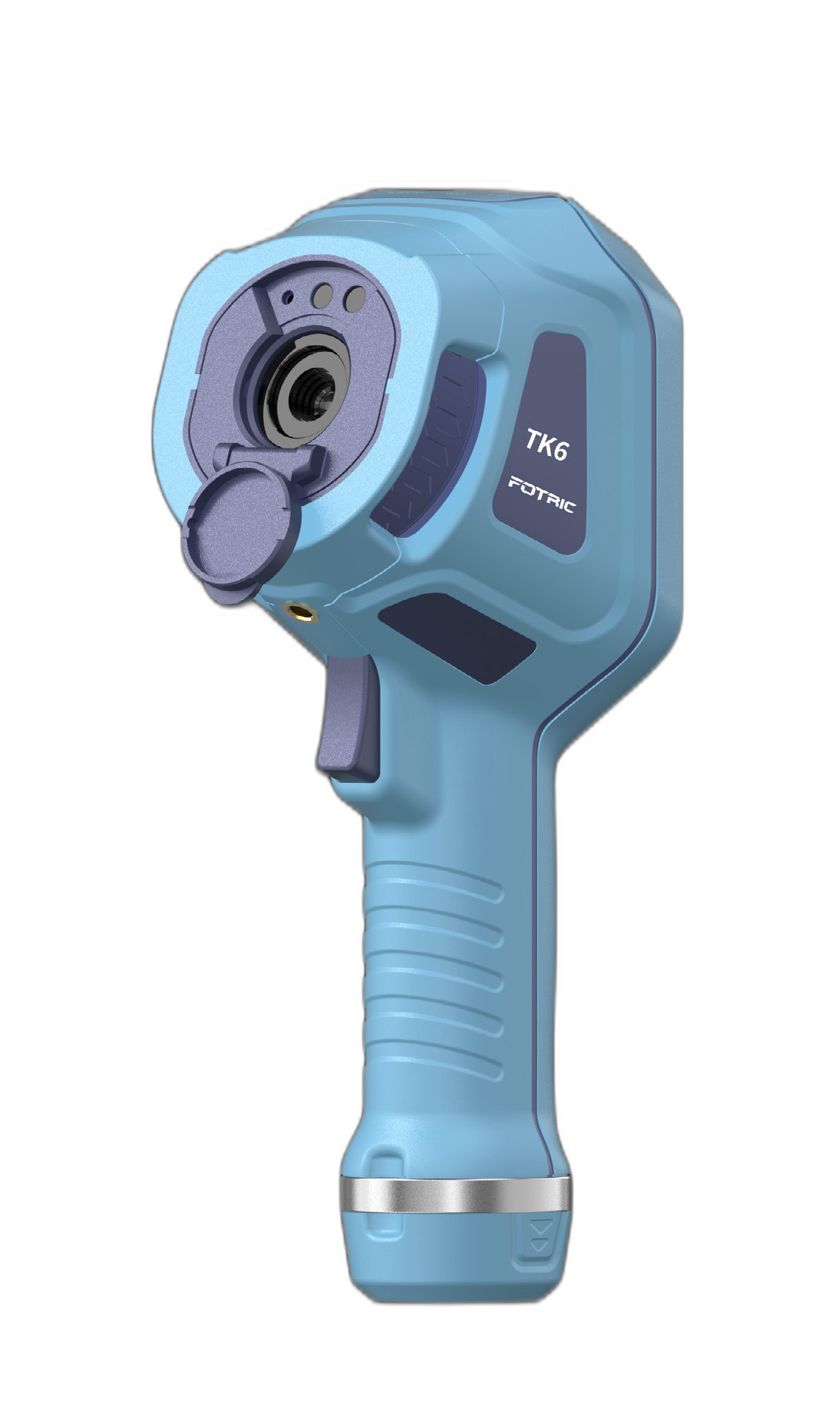

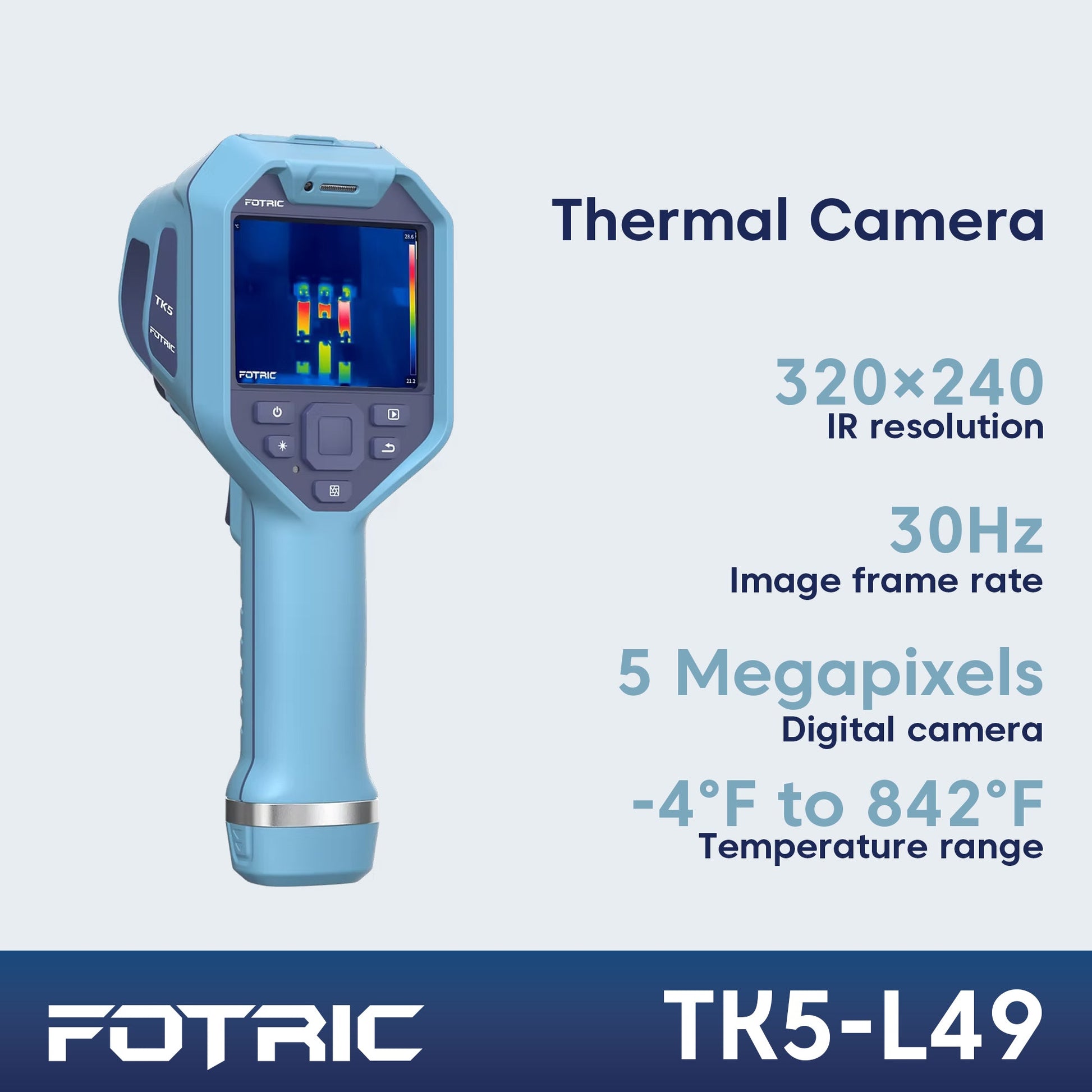

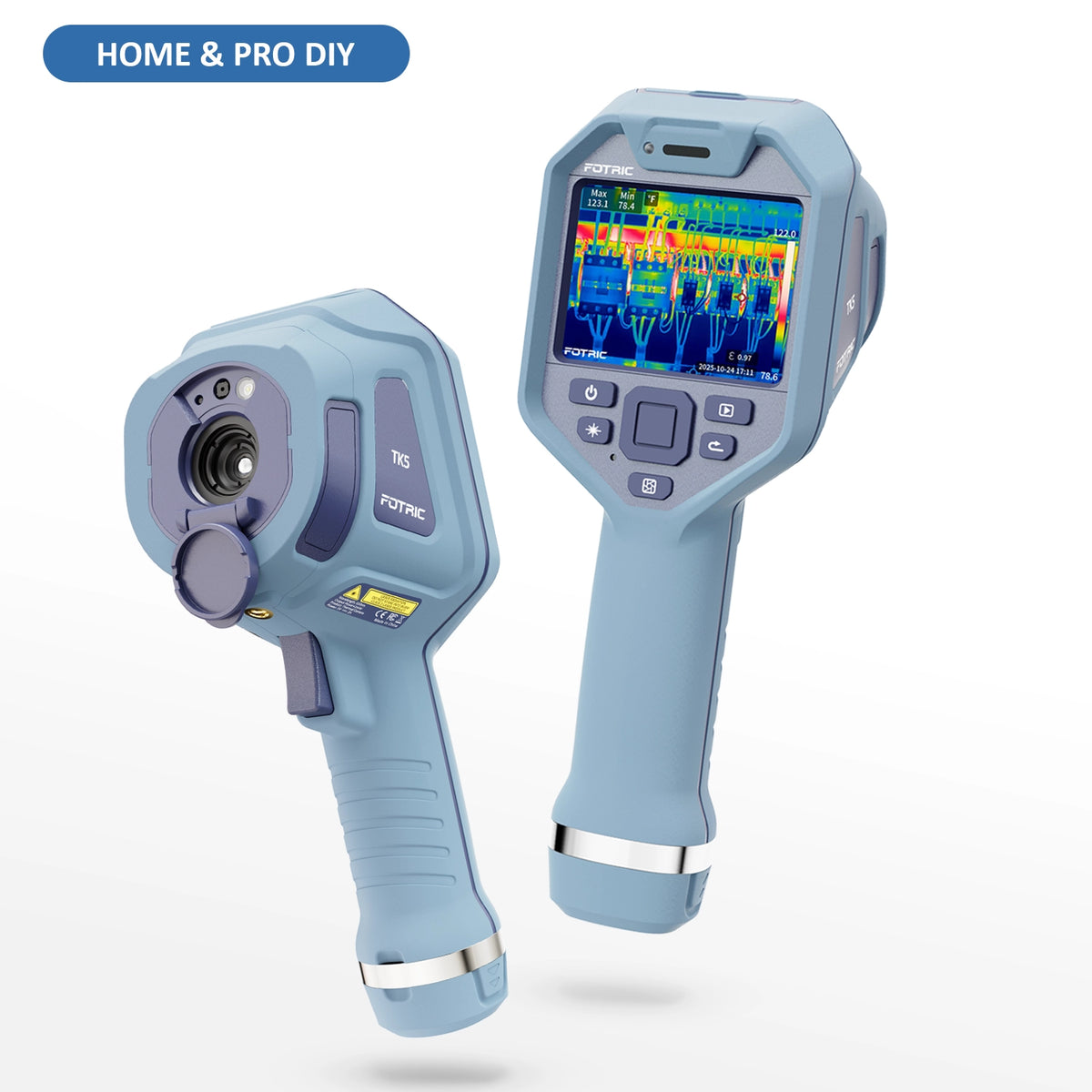

FOTRIC TK5 Cámara de Imagen Térmica
$709.99

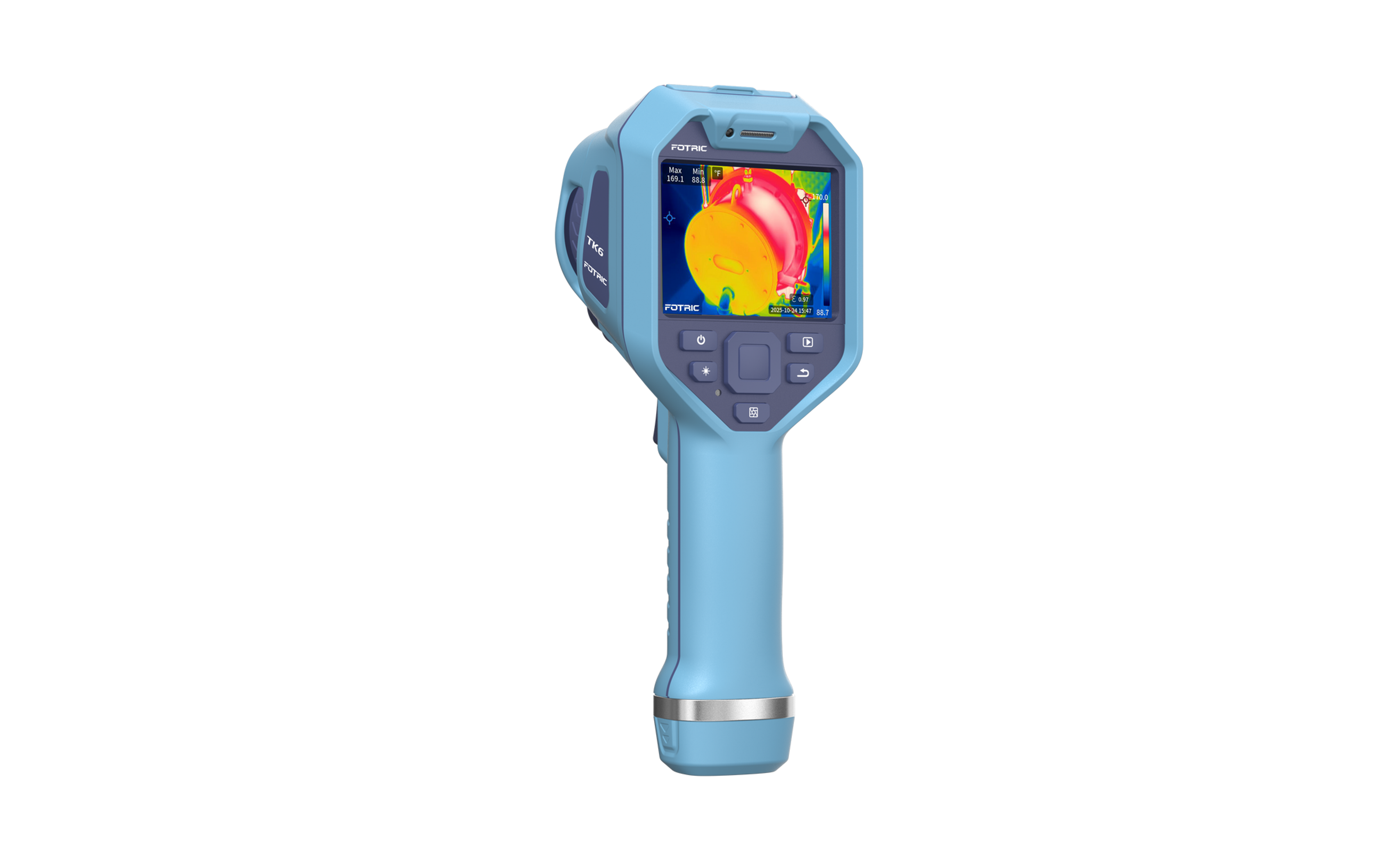

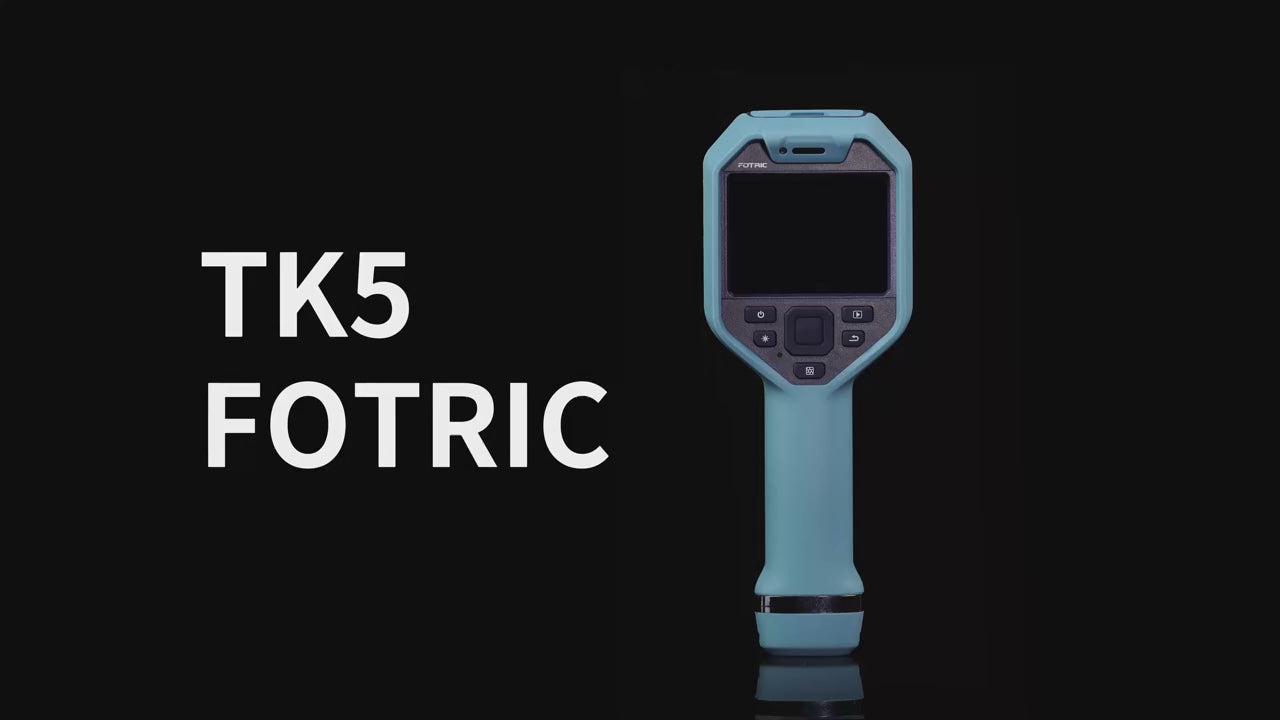

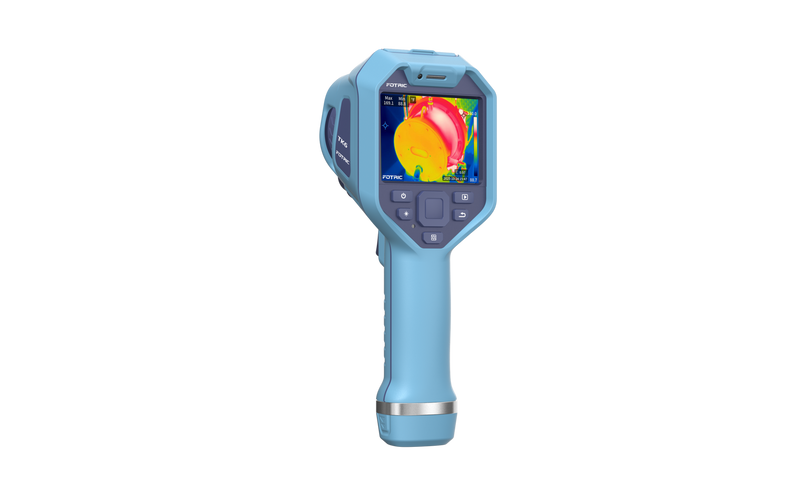

FOTRIC TK5 Cámara de Imagen Térmica
Cámara de imágenes térmicas FOTRIC TK6, resolución IR 384 x 288, 25°*19° de campo de visión, cámara térmica de enfoque manual con cámara visual de 5MP para inspecciones de edificios e instalaciones eléctricas, de -4°F a 1022°F, pantalla táctil de 3.5"
- Precio habitual
- $709.99
- Precio de venta
- $709.99
- Precio habitual
-
Envío calculado al finalizar la compra.
Description

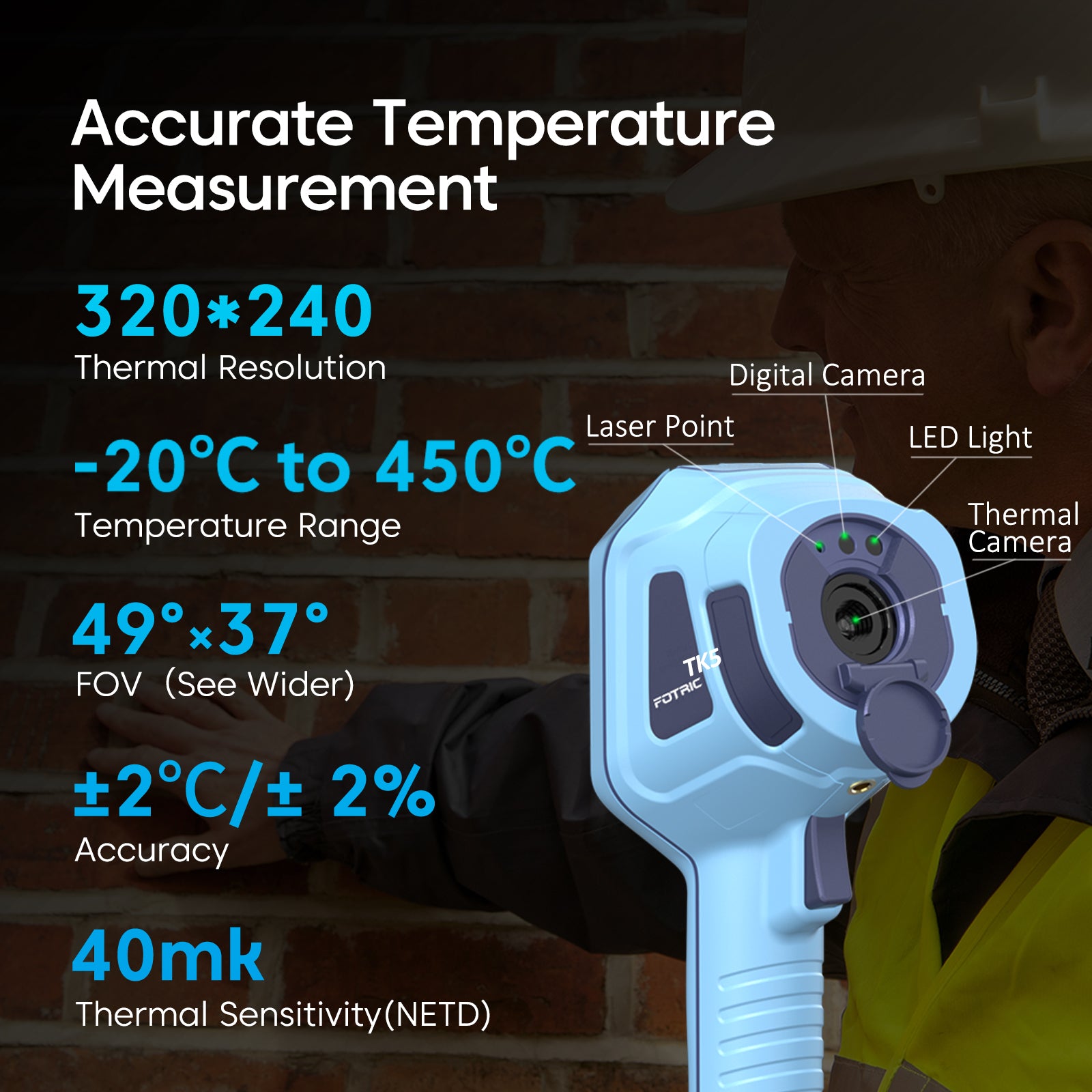

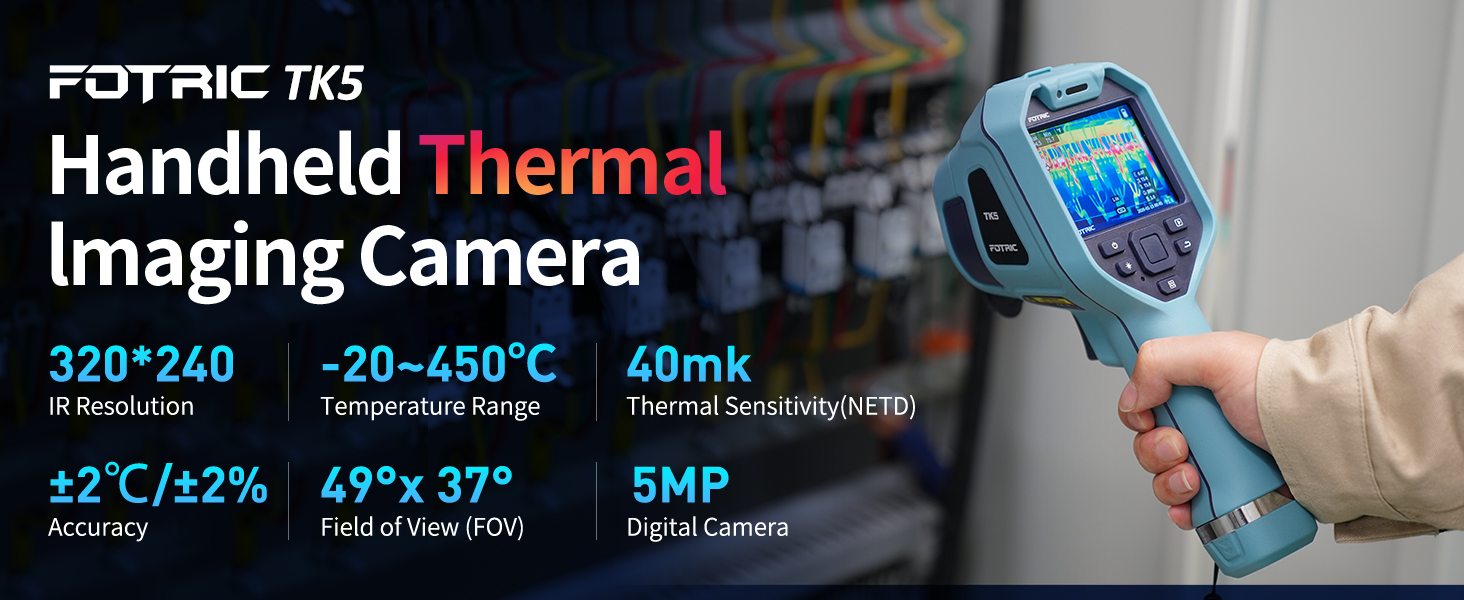

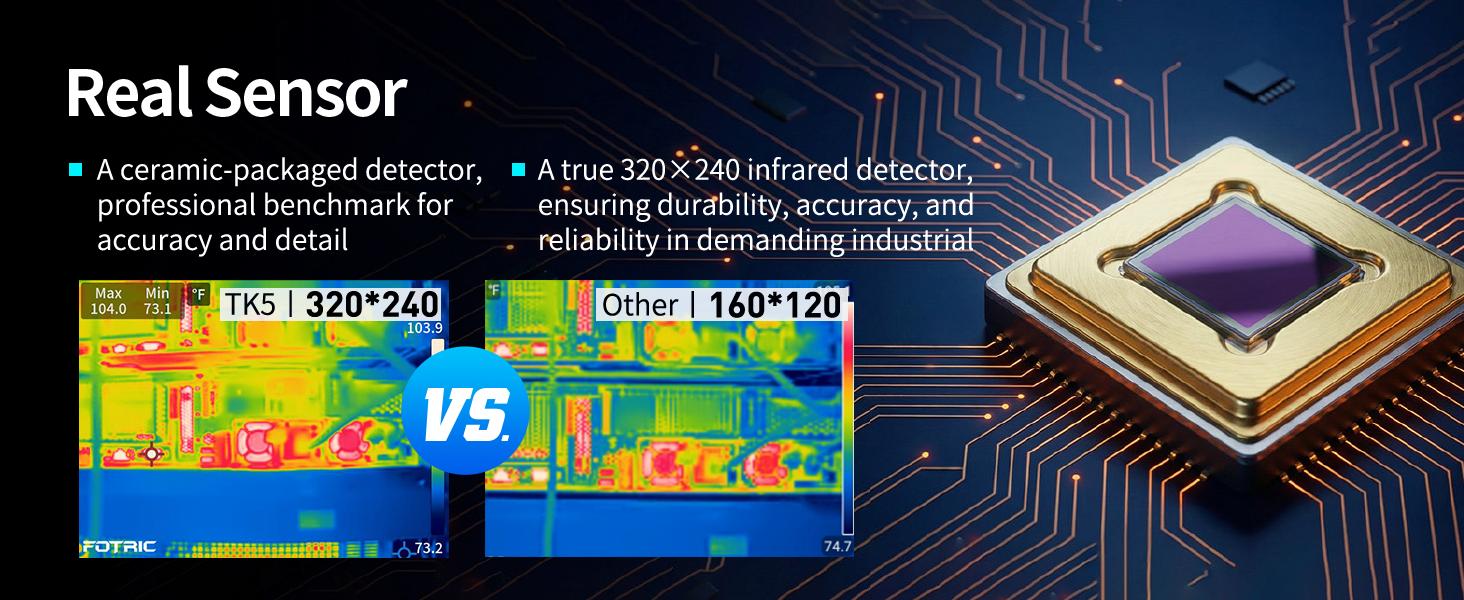

- Resolución térmica real de grado profesional de 320×240 que entrega 76,800 píxeles brutos mediante un detector infrarrojo de cerámica de alta calidad. A diferencia de los dispositivos interpolados por software, la cámara FOTRIC TK5 captura datos térmicos reales píxel por píxel para una inspección industrial estable y precisa.
- Con un diseño de paso de píxeles de 12 µm y una sensibilidad térmica de 40mK (0.04°C), la cámara detecta diferencias de temperatura sutiles de forma clara con alto contraste. Detecta de manera eficiente puntos calientes eléctricos, defectos de aislamiento, fallos de HVAC y fallos ocultos en edificios.

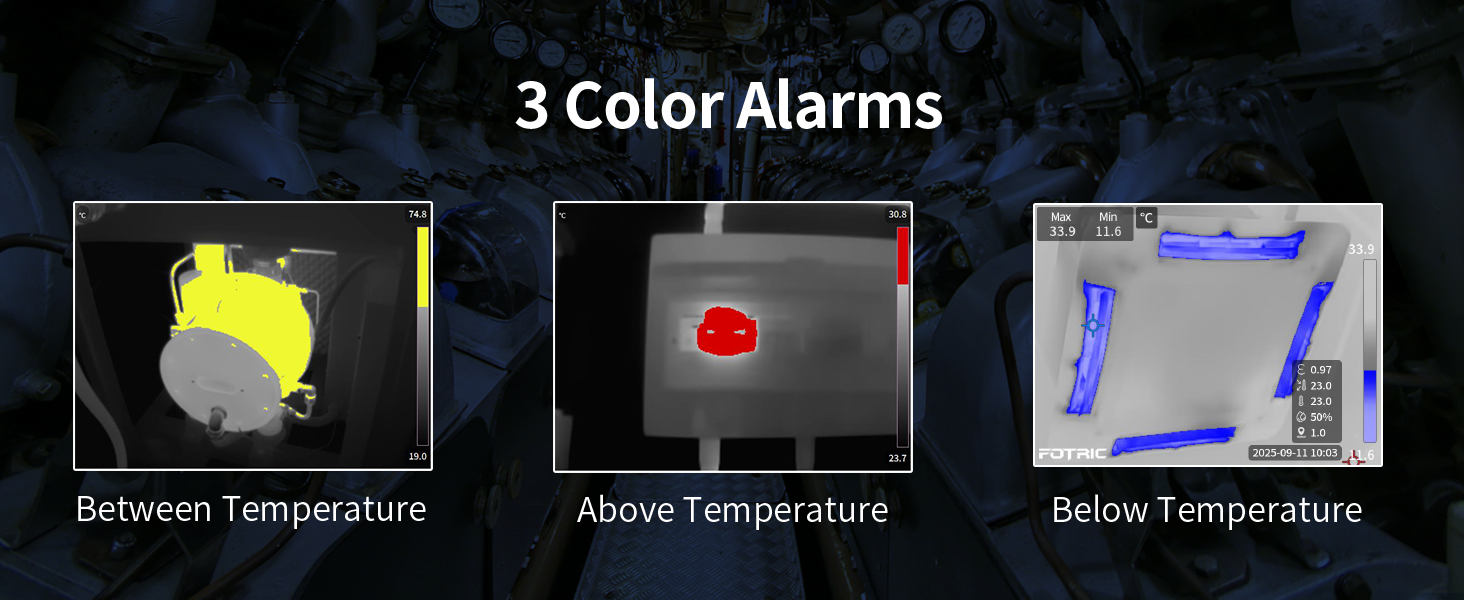

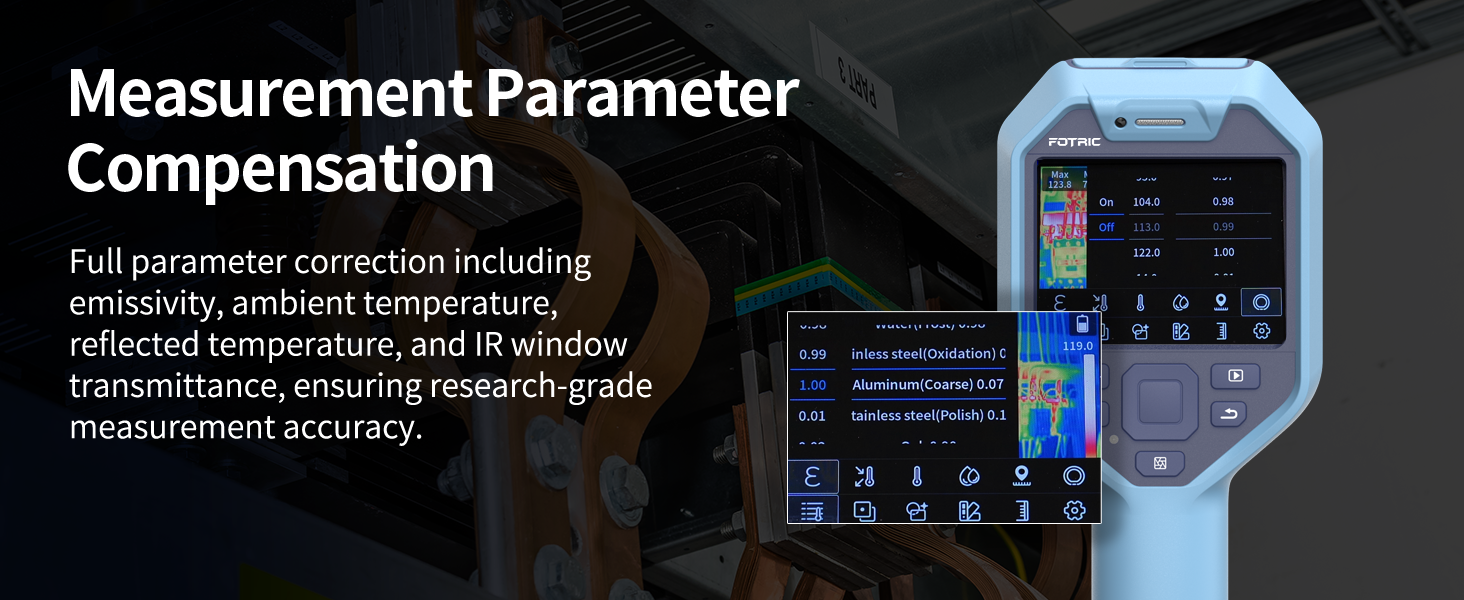

- Está equipada con herramientas de diagnóstico integradas prácticas: seguimiento automático de puntos calientes y fríos, emisividad ajustable y alarmas de color de temperatura personalizables. Ideal para mantenimiento eléctrico, resolución de problemas de HVAC, detección de humedad en edificios y tareas de inspección domiciliaria.

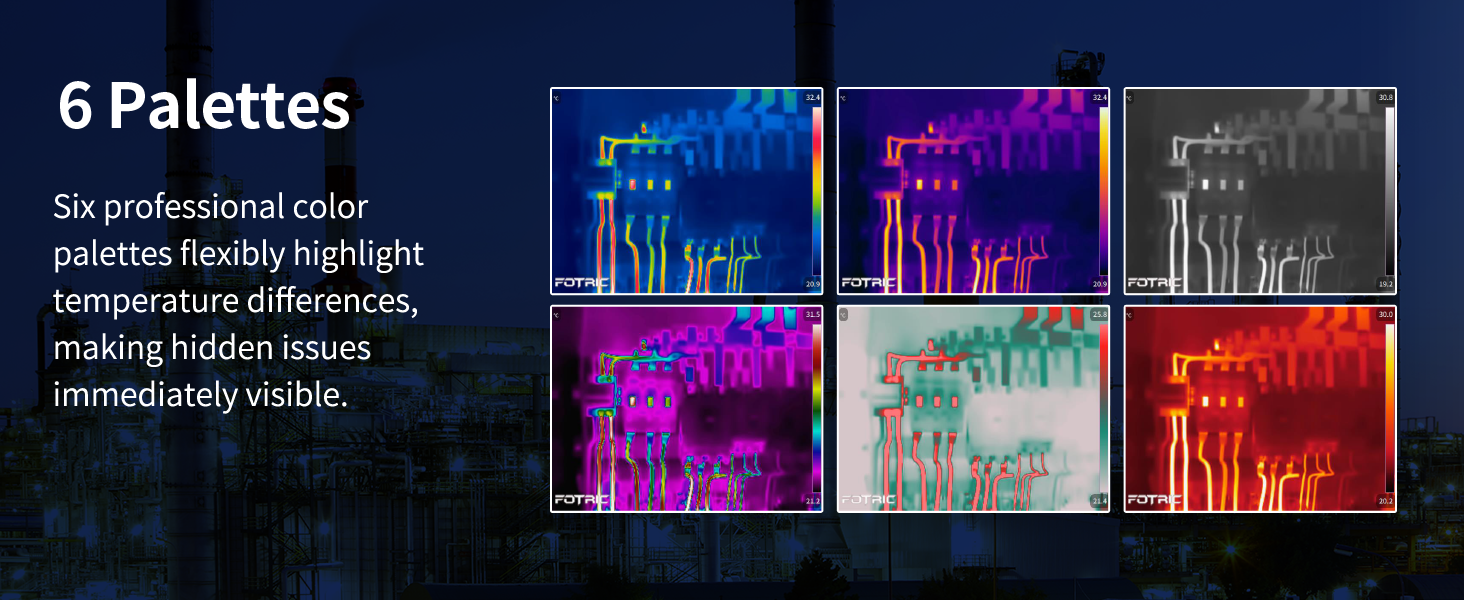

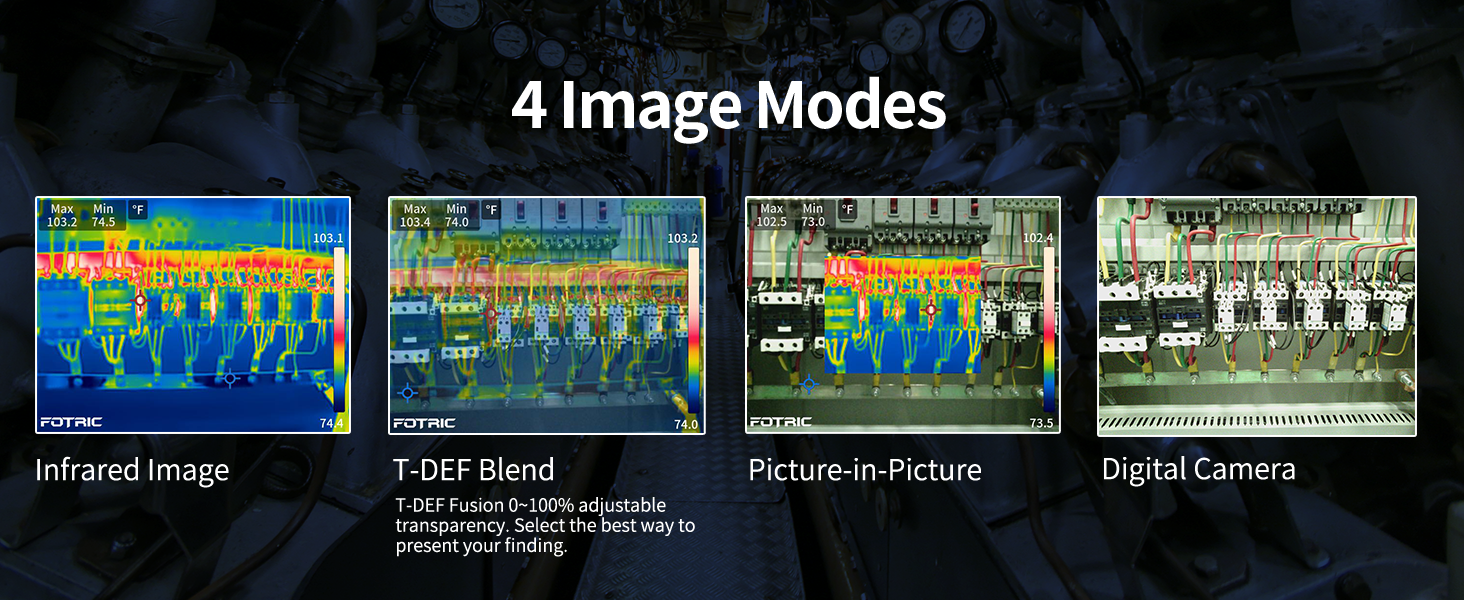

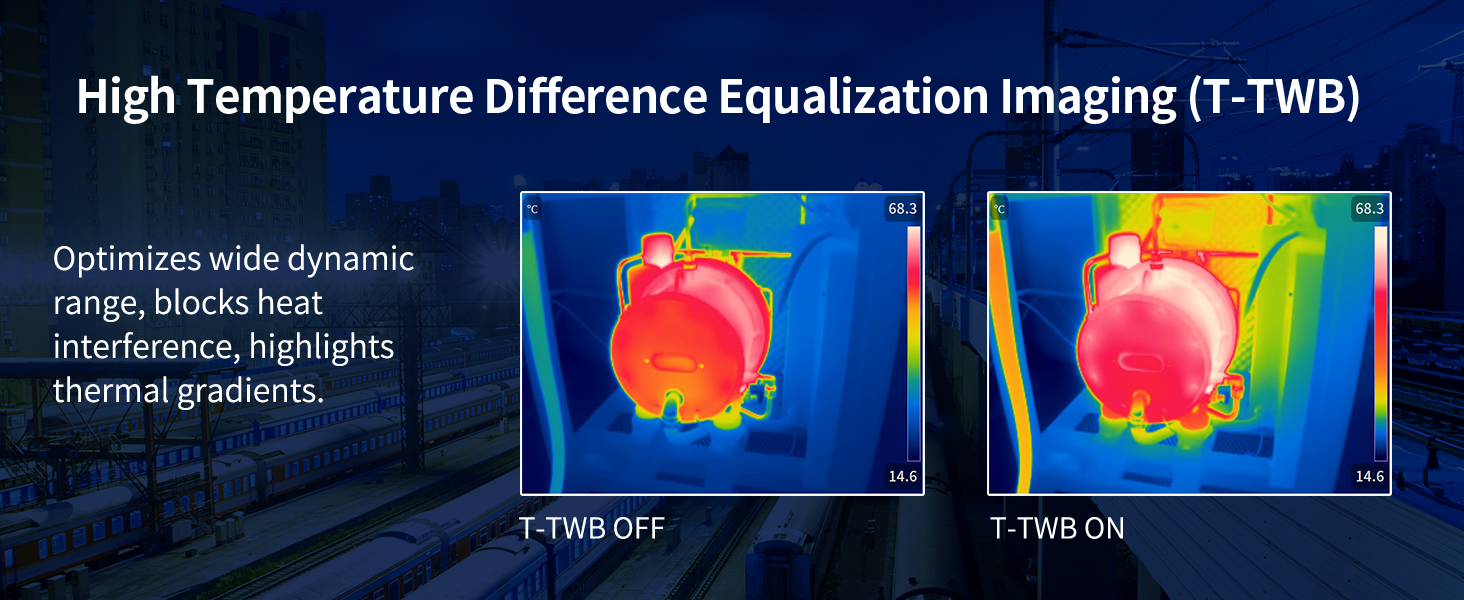

- Cuenta con 4 modos de imagen flexibles: Infrarrojo, Fusión T-DEF, Imagen dentro de imagen y Cámara Digital. Se usa la tecnología de equilibrio de longitud de onda térmica TWB para optimizar la distribución de la paleta de colores, presentando las diferencias de temperatura de forma más intuitiva para un diagnóstico más rápido.

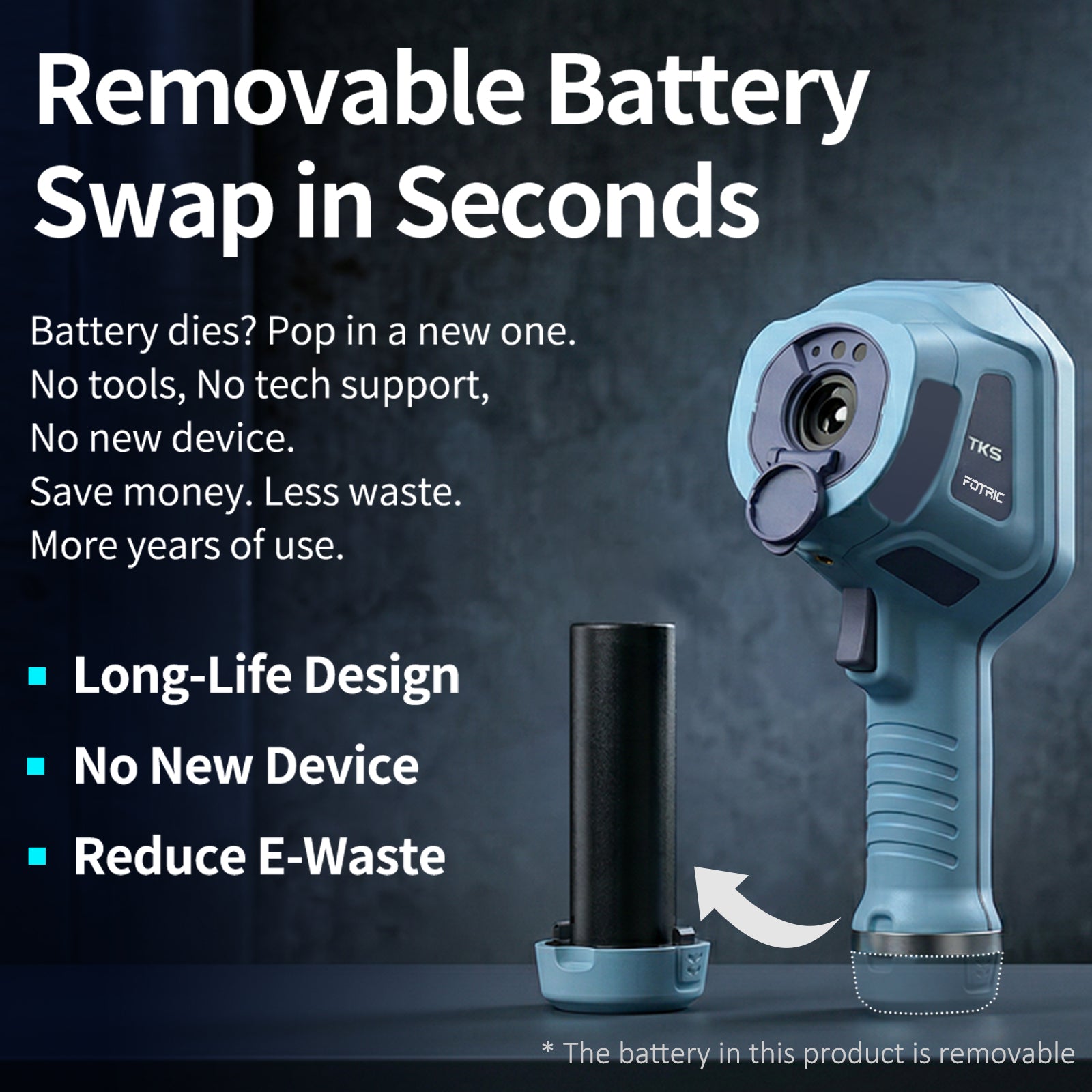

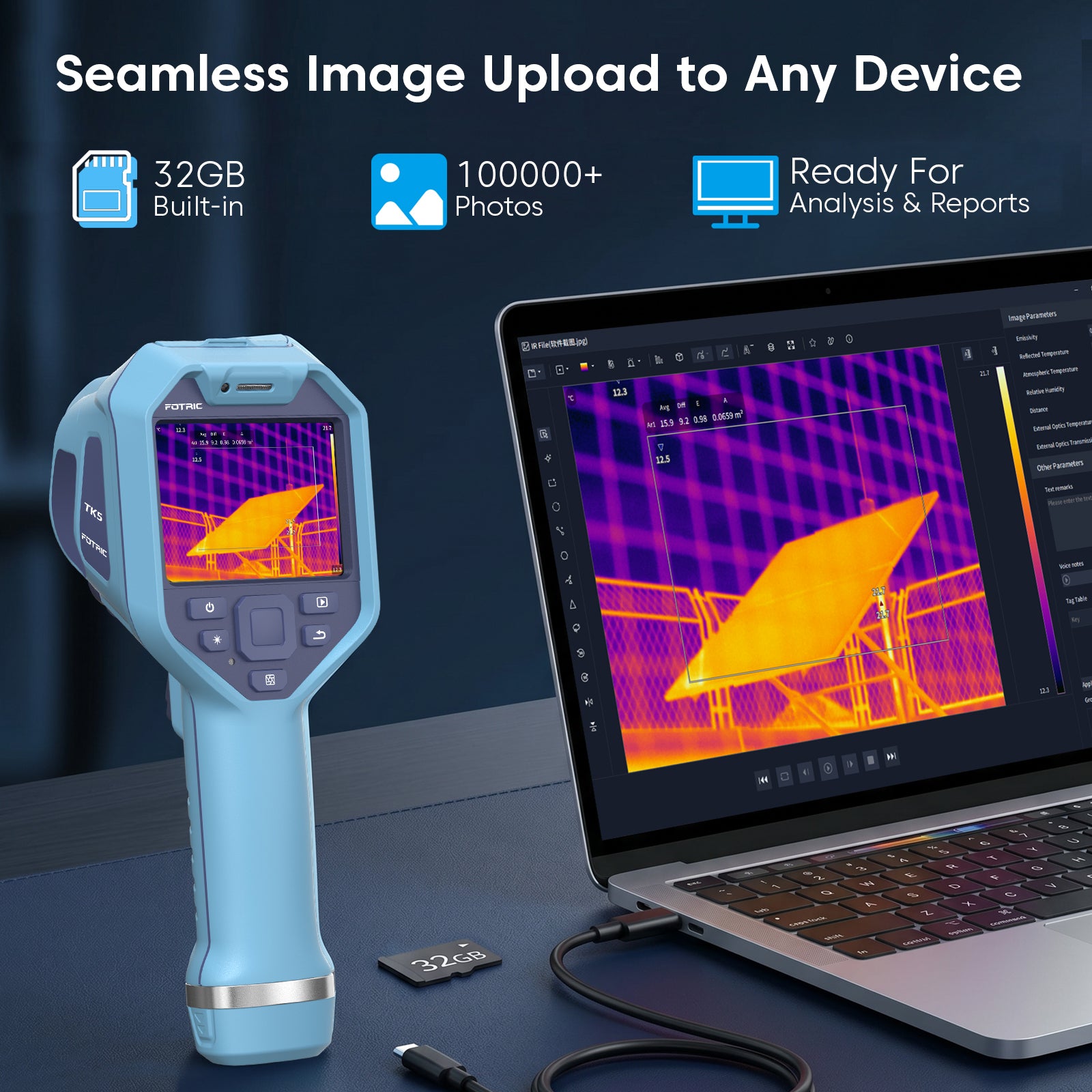

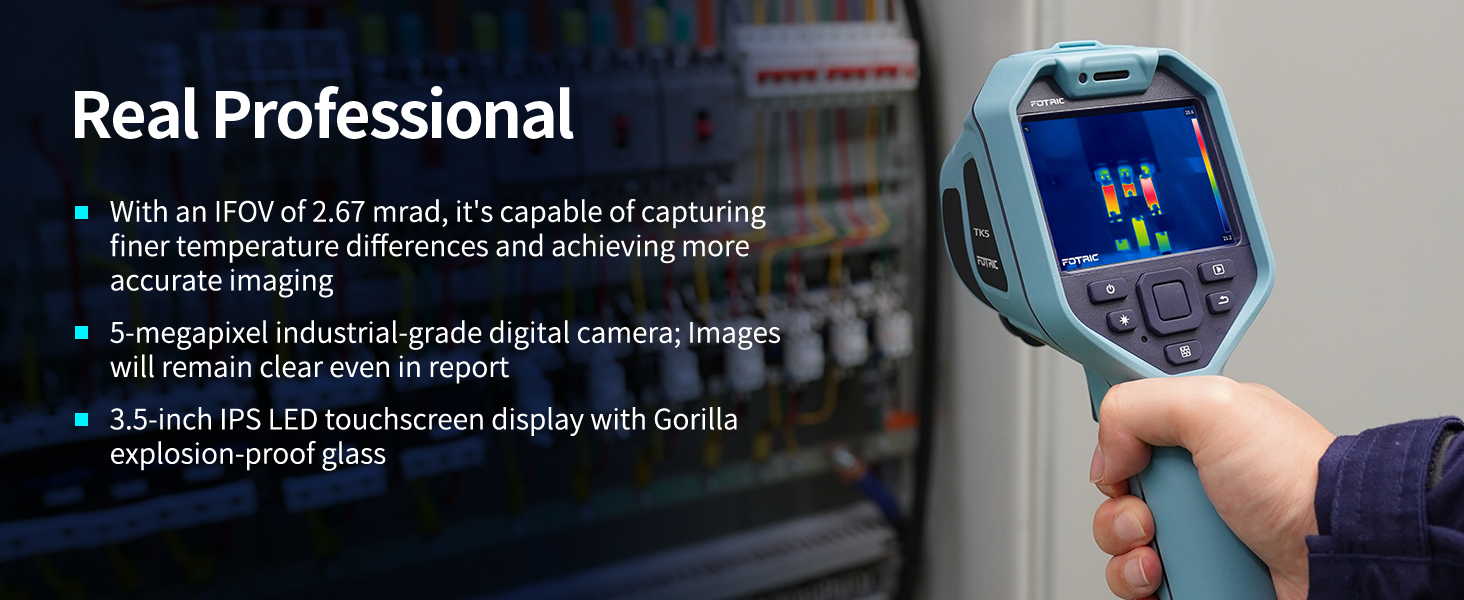

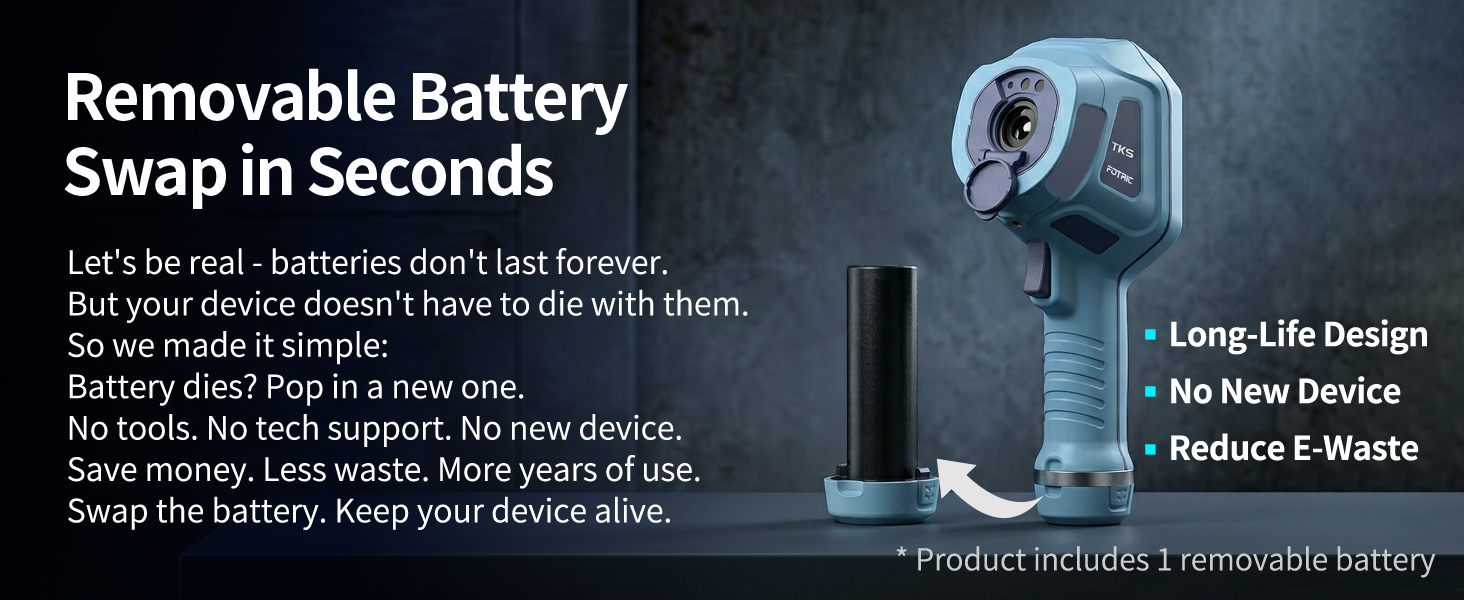

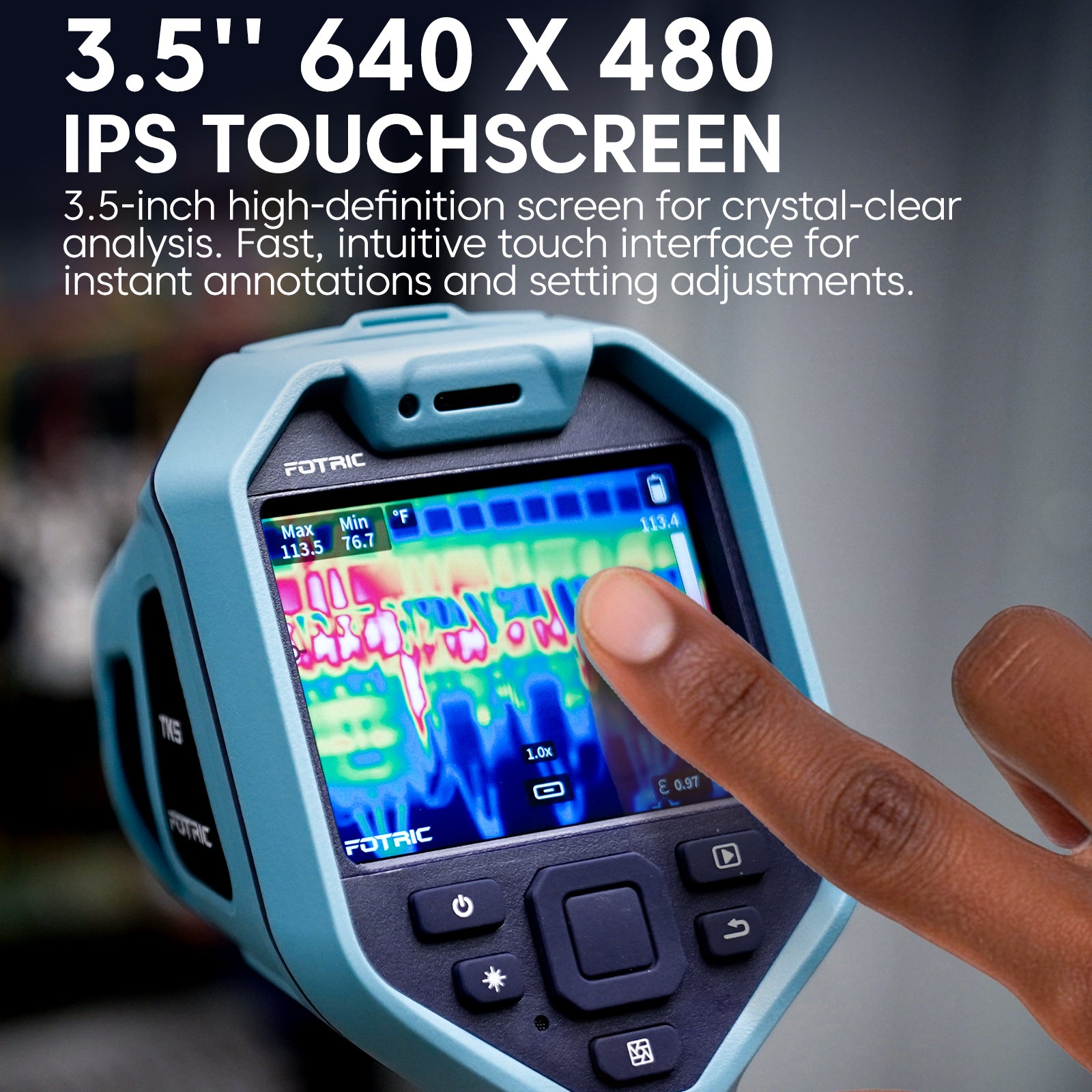

- Resistente al polvo y al agua IP54 con protección contra caídas de 2 metros, perfectamente construida para su uso en obras. La pantalla táctil IPS de 3.5” y la cámara visible de 5MP garantizan una visualización clara incluso bajo luz intensa. Pesa solo 1.59 lbs, acompañada de una batería intercambiable de 5000mAh para una autonomía de más de 4 horas, además de una tarjeta TF de 32GB para un almacenamiento conveniente de imágenes.
Order today
--
Ready by
--
Est. delivery
--
Specifications
Product Model
30Hz

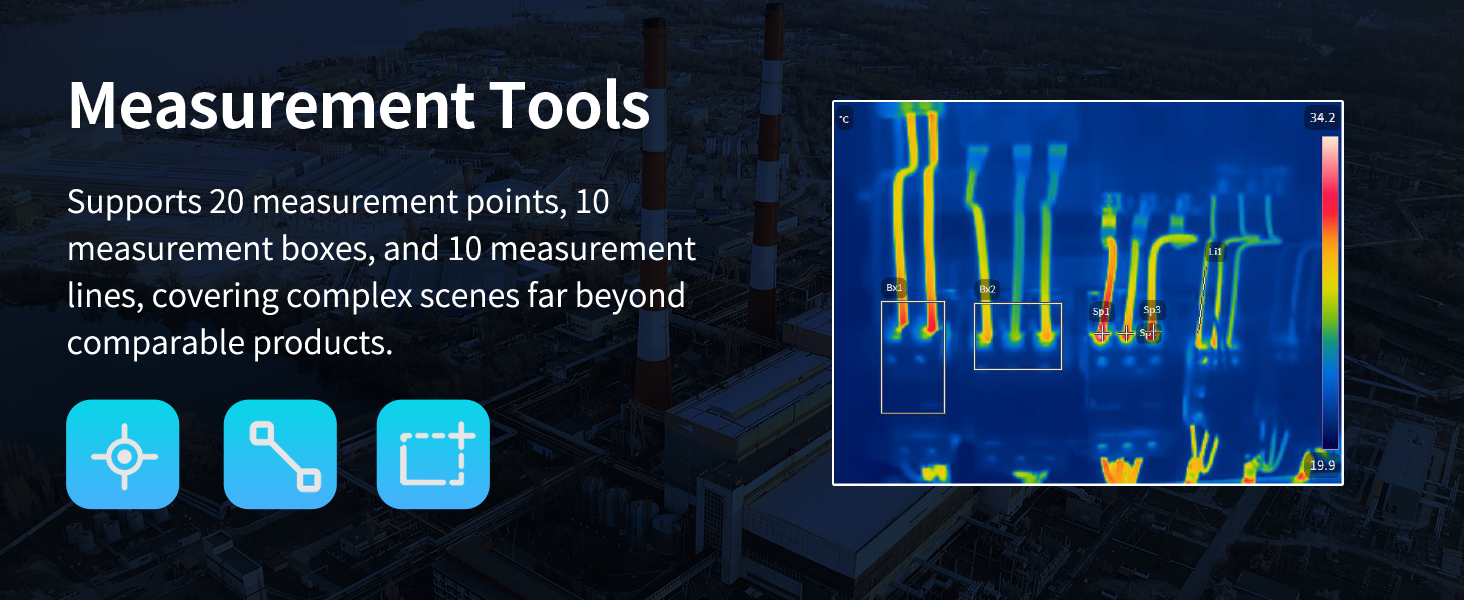

Measurement Spot
20
Measurement Line
10
Measurement Area
10
Image Mode
Thermal image, Digital camera, Picture in Picture & T-DEF® blend
T-DEF®
Support, thermal and visible light image blend, transparency 0% ~100%
T-TWB®
Support histogram thermal color display
R
This thermal imaging camera delivers impressive clarity and usability, making it a strong choice for electrical work, home diagnostics, and building inspections. The 320*240 IR resolution provides sharp thermal detail, and the built?in 5MP visual camera helps capture clear comparison images. The 3.5" touchscreen is responsive and easy to navigate, even when switching between modes on the job. Its wide 4°F to 842°F temperature range and 49°*37° field of view make it versatile for everything from spotting heat loss to identifying electrical hotspots. The handheld design feels sturdy without being heavy. Overall, it’s a reliable, accurate, and user?friendly tool that performs well in professional and DIY settings.
J
This Fotric TK5 Thermal imaging device features rugged construction with durable materials. The imager offers good resolution and detail for various types of work. Great for detecting leaks and getting a thermal picture of whats actually going on. The device is easy to setup and use out of the box. Appears to be a premium device as reflected by the price tag.
M

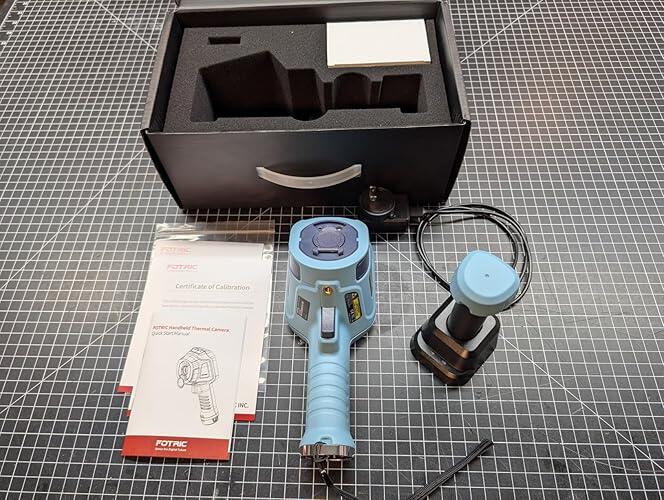

This is the king of thermal cameras, it has so many features for different applications. Before we could remodel and add another room onto the house, we needed to see where the electrical wires were so we'd know where to add or bypass an area. Well, this detected all the electrical hotspots easily. The readings were 100% accurate every time. I expected this to be a bit heavy but it isn’t, it is lightweight and also heavy duty and durable. Good thing it came with an instruction and information booklet because this has a lot of features, the booklet is very informative. Battery last quite a long time before needing charged. The thermal images are really cool to look at and easy to understand. Value for money this is totally awesome and worth it.
N

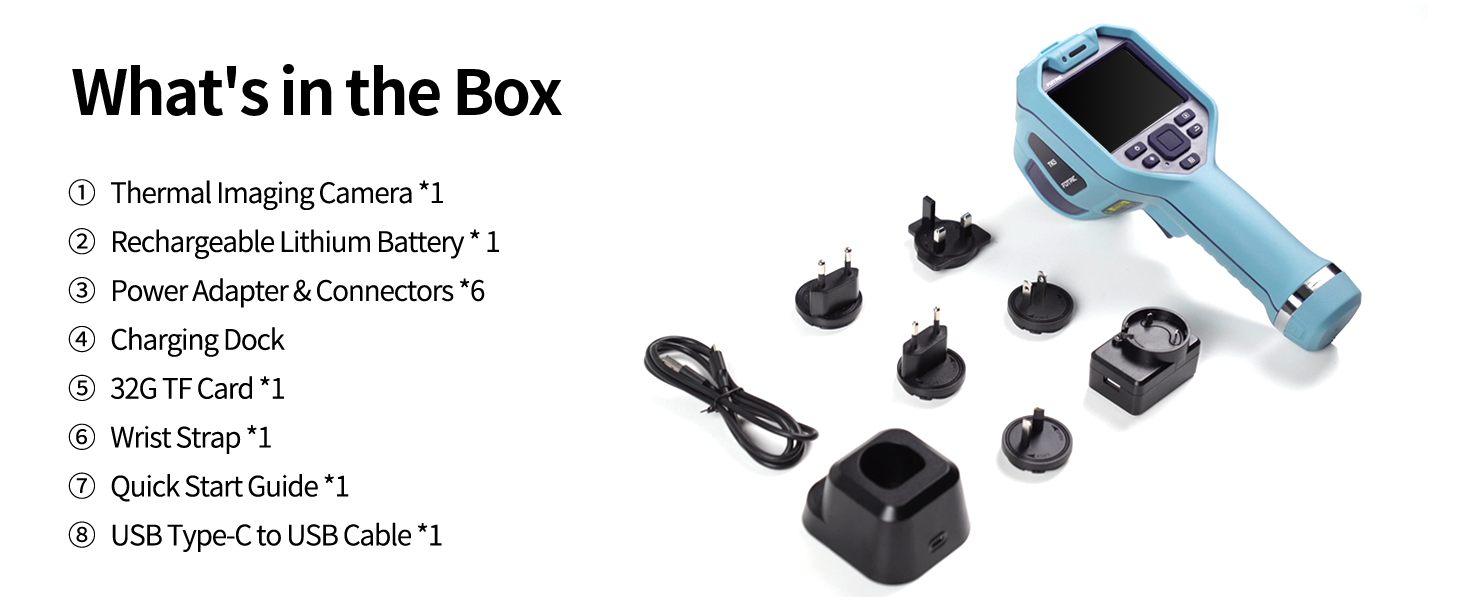

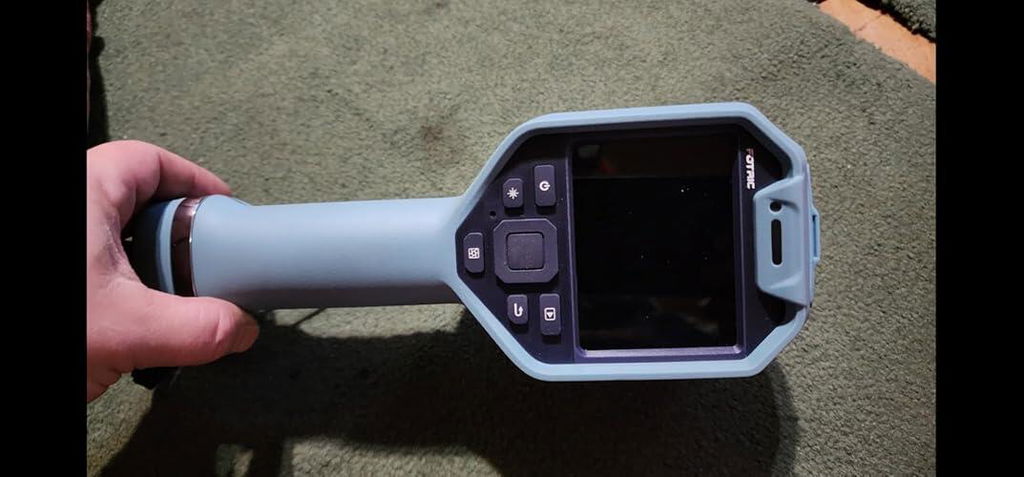

My unit arrived ready to go with a charged battery. The rubberized body feels tough and balanced, much like my higher-end FLIR unit, and the overall shape sits comfortably in my hand. Included was an adapter kit for charging the device using any power source from around the world.

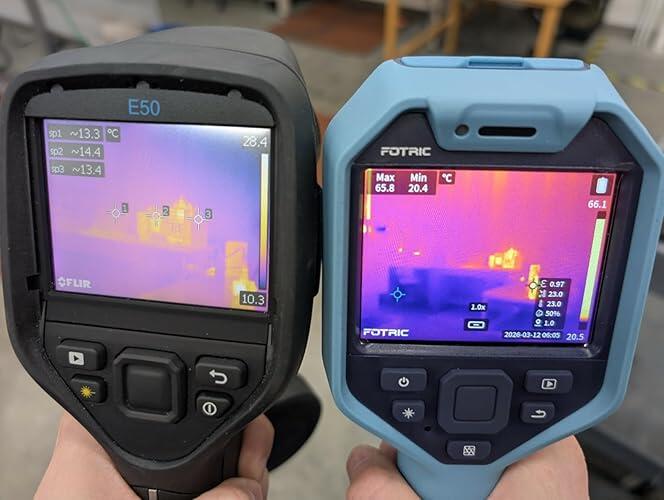

It boots quickly and shows clean thermal images with low noise. The native 320x240 resolution gives enough detail for electrical panels, HVAC troubleshooting, insulation gaps, water leaks, and similar jobs. Temperature readings match what I get from my FLIR on the same targets, so accuracy holds up. The wide range covers -4°F to 842°F, and the field of view suits most field tasks. Fusion mode that overlays thermal on visible helps place heat patterns quickly, and the 5MP visual camera records clear reference shots. The removable battery plus USB-C charging keeps things practical when work runs long.
The fixed-focus lens works fine for typical distances, and the tripod thread adds stability when needed.
Several issues cut into the experience. The touchscreen responds unevenly, with zones that ignore taps or need extra pressure, unlike current phones. Menus bury some controls, forcing repeated hunting.
