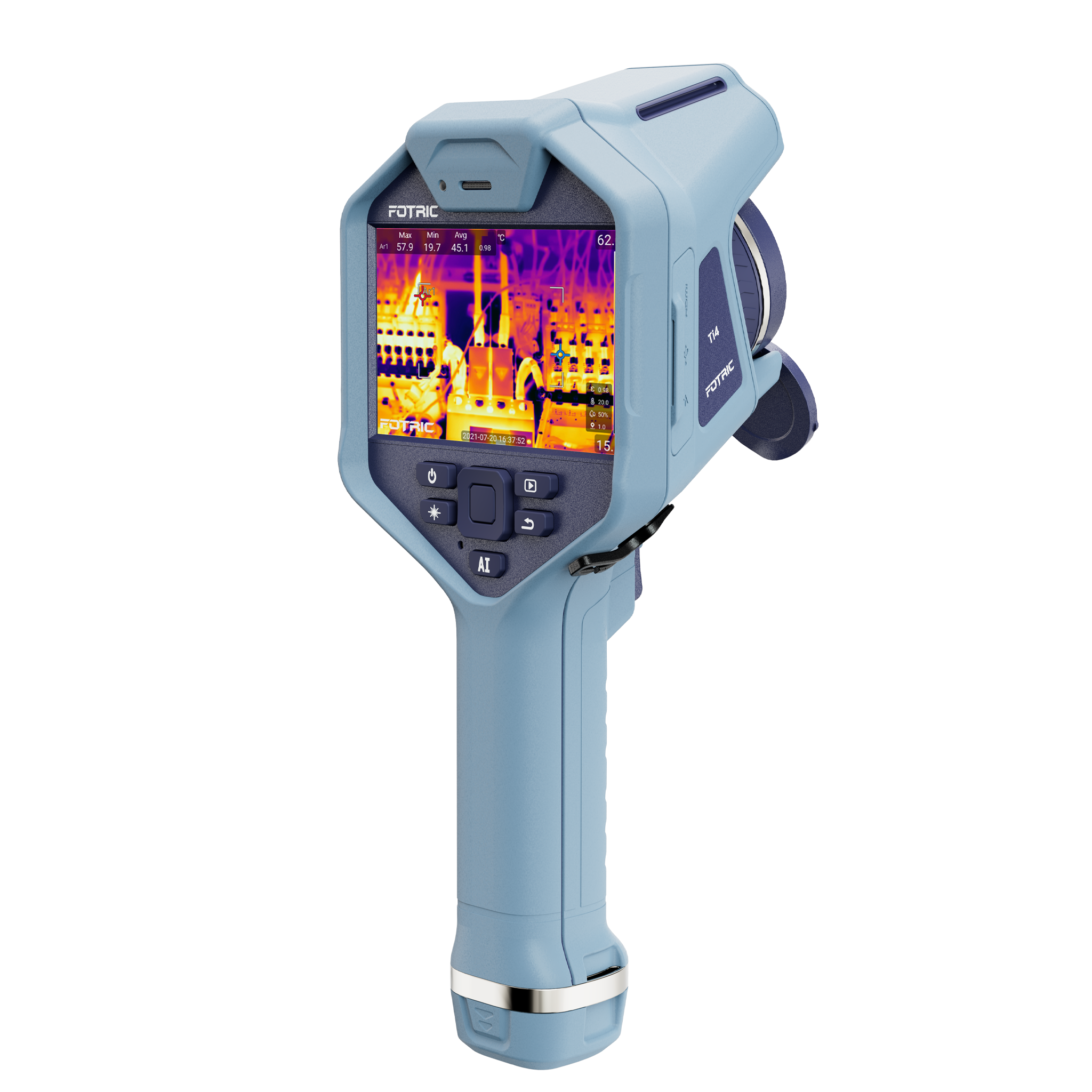

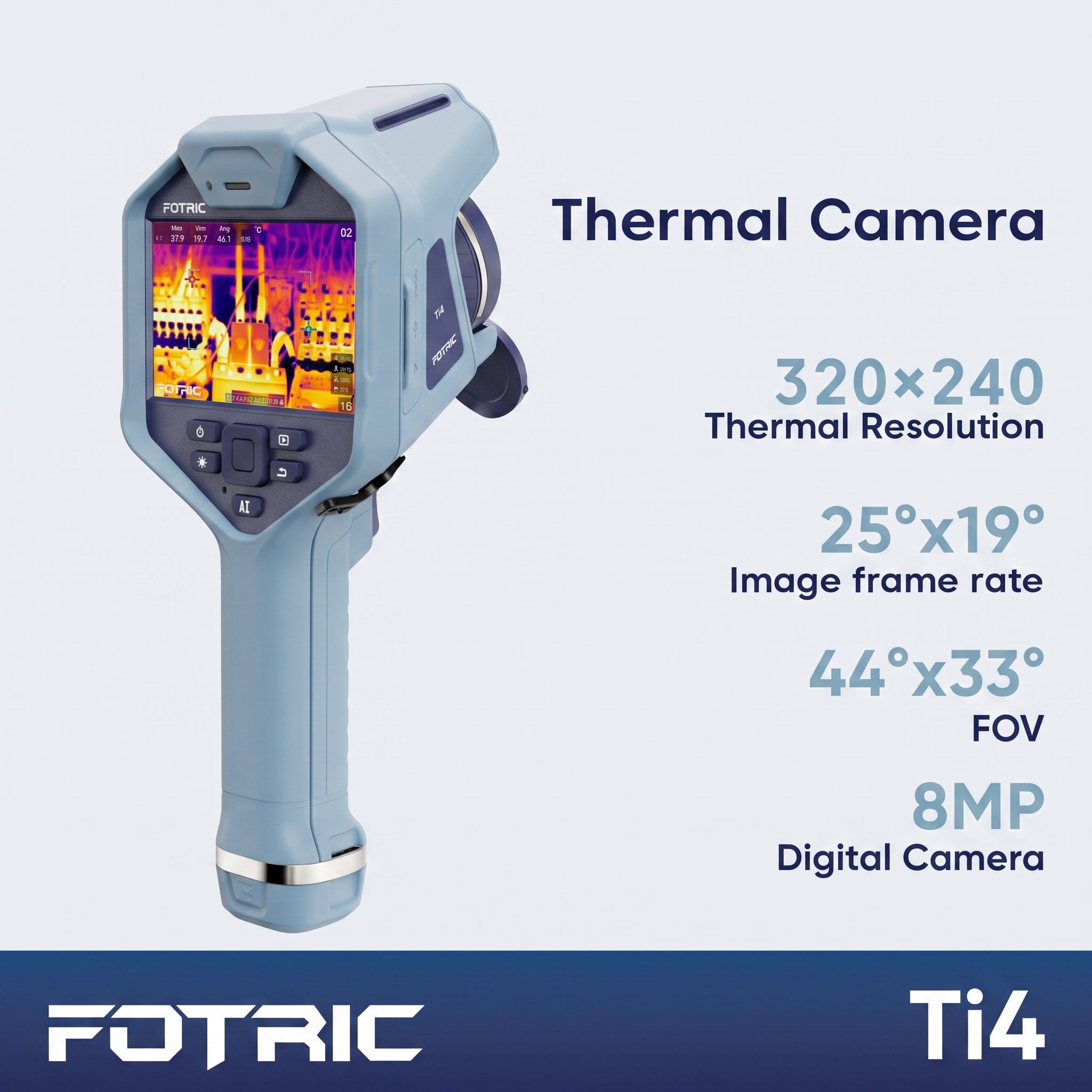

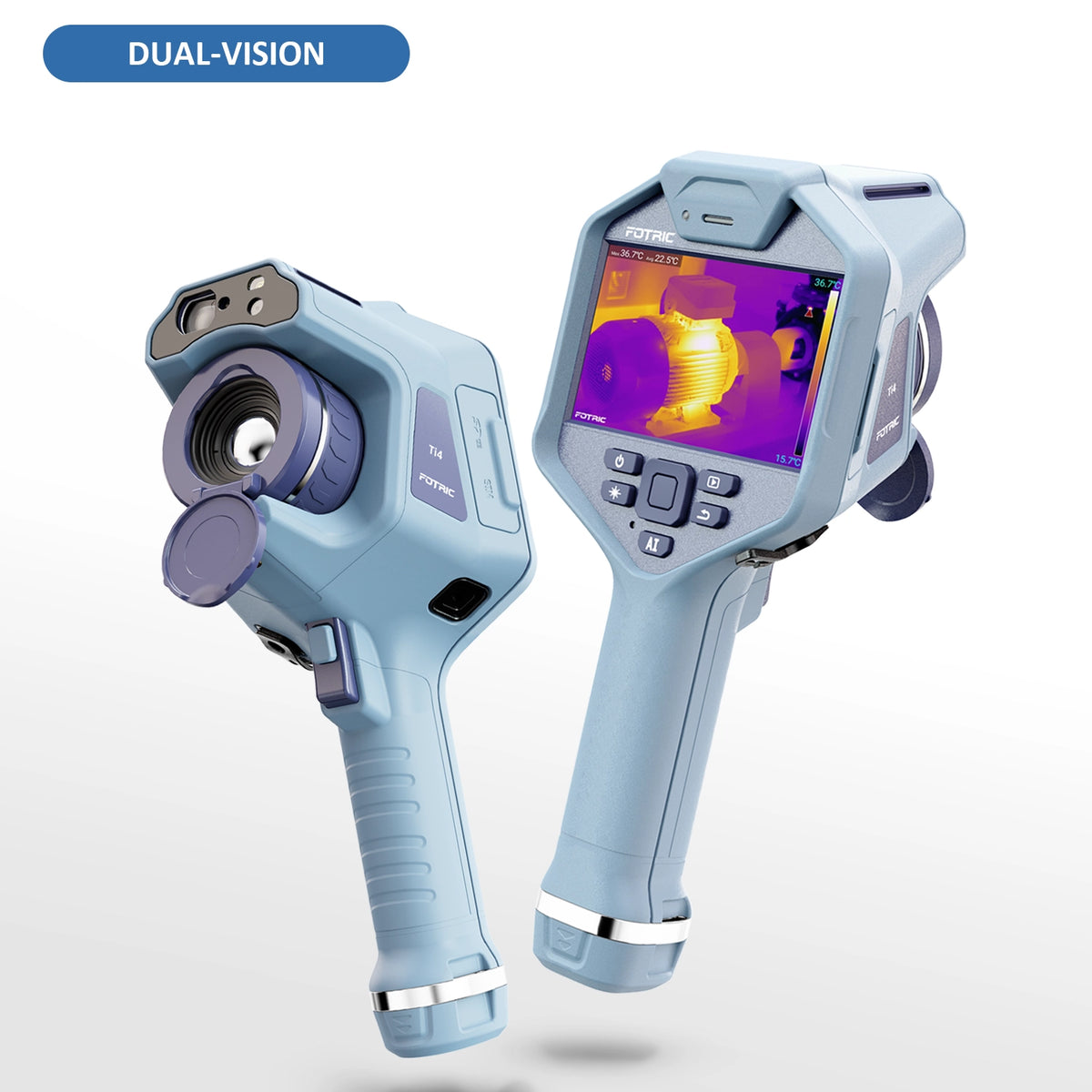

FOTRIC Ti4 Thermal Imaging Camera

TurboFocus, 320x240 IR Resolution, -4°F to 1202°F, 44°x33° FOV, 5" Touch Screen, Industrial Thermal Imager for R&D, Electrical & Industrial Inspections

Precio habitual: $2,359.99
Precio de venta: $2,359.99
Precio habitual

Envío calculado al finalizar la compra.

Quantity:

Description

High Precision Measurement

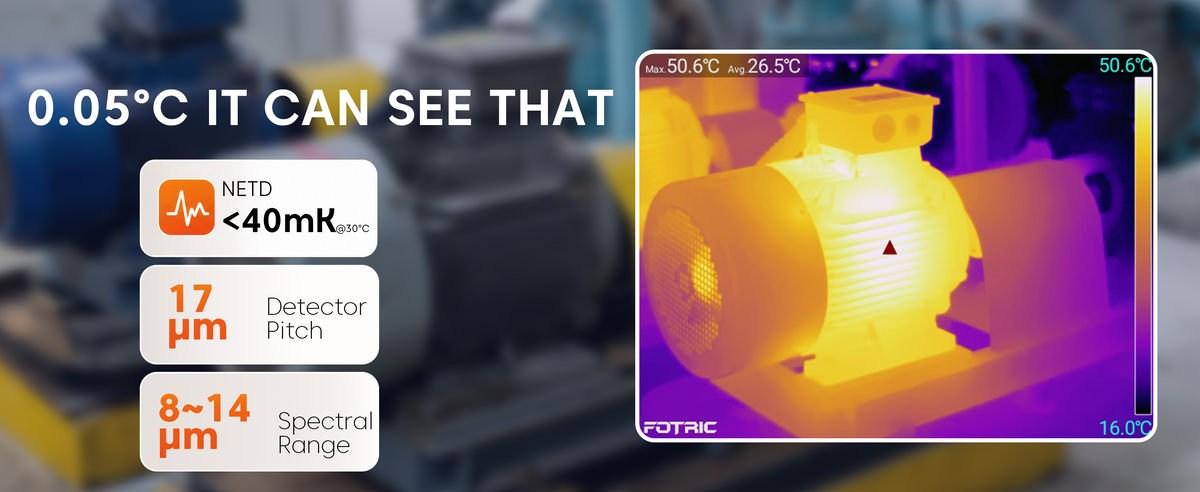

This industrial thermal imager adopts 320×240 uncooled infrared detector with <40mK thermal sensitivity; temperature accuracy ±3.6℉ or ±2%, wide -4℉~1202℉ measuring range; built-in TurboFocus intelligent focus system combines laser-assisted, thermal contrast, touch and manual focus for fast clear thermal imaging capture.
Wide Industrial & Educational Research Applications
Versatile thermal camera for multi-scenario testing; industrial use includes electrical cabinet inspection, power line fault detection, building heat loss audit, mechanical equipment overheat diagnosis; educational & scientific research scenarios cover lab thermal experiment, material heat transfer research, engineering teaching demonstration and environmental temperature monitoring.
Multiple Image Optimization & On-device Analysis

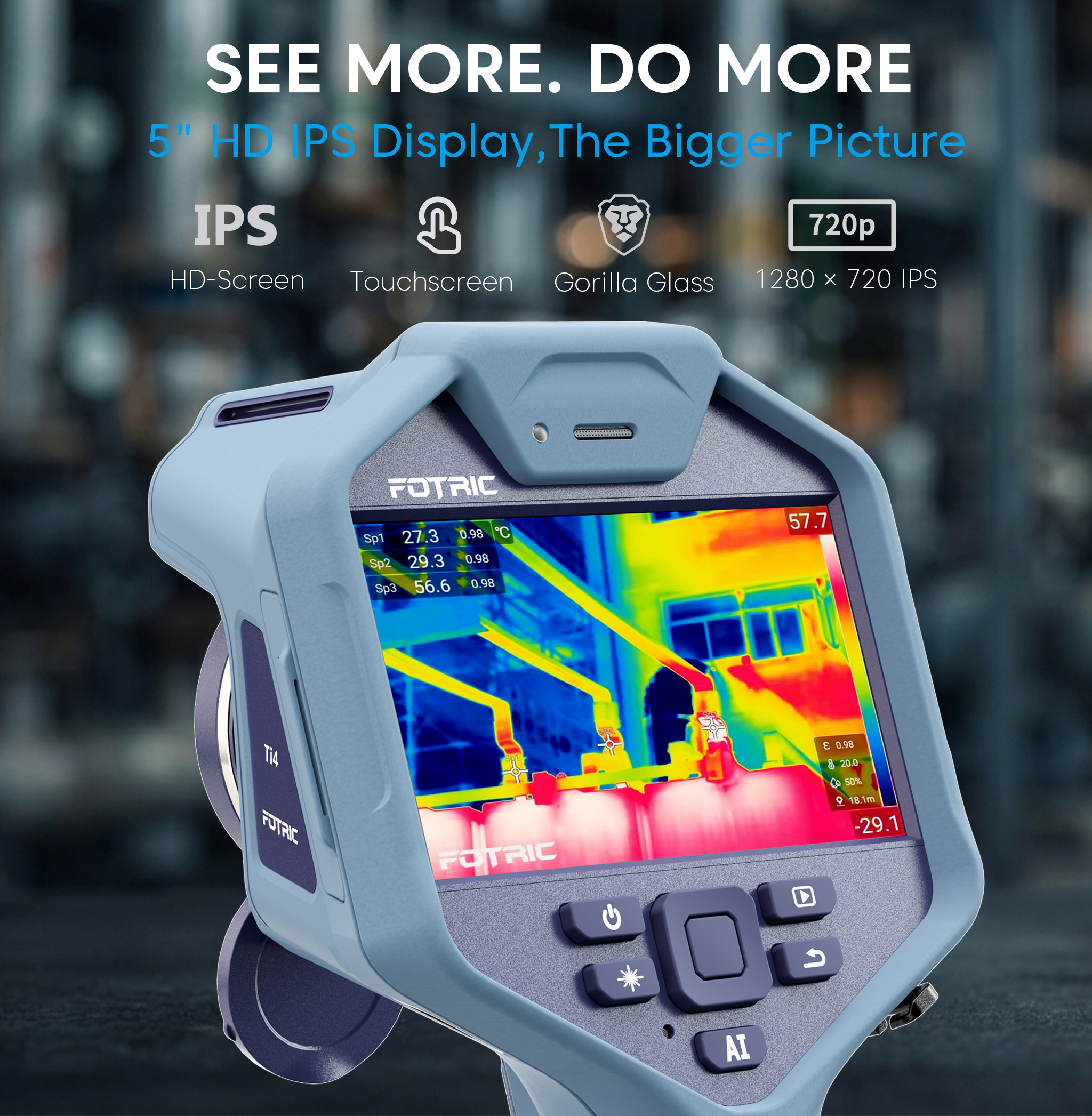

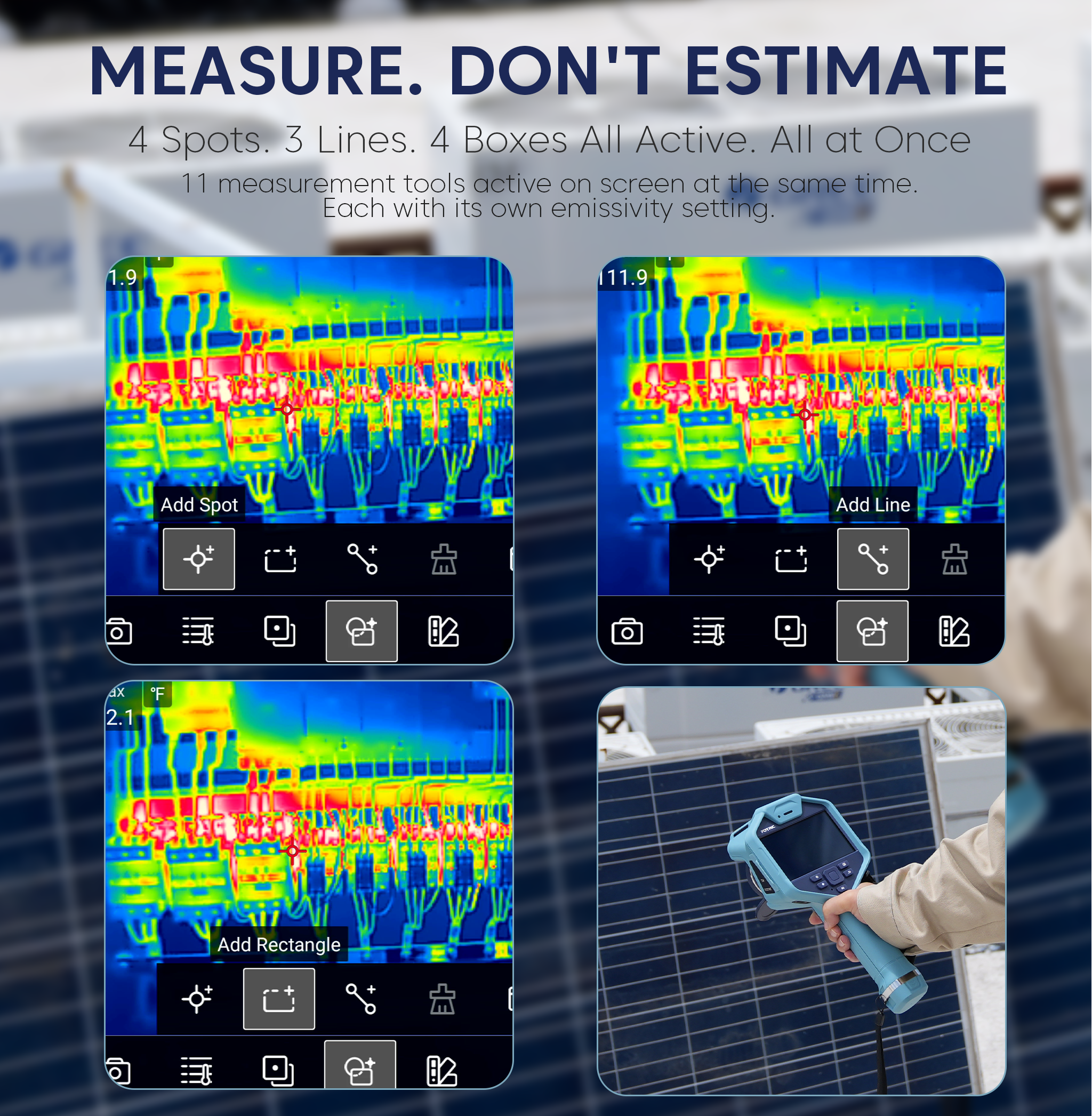

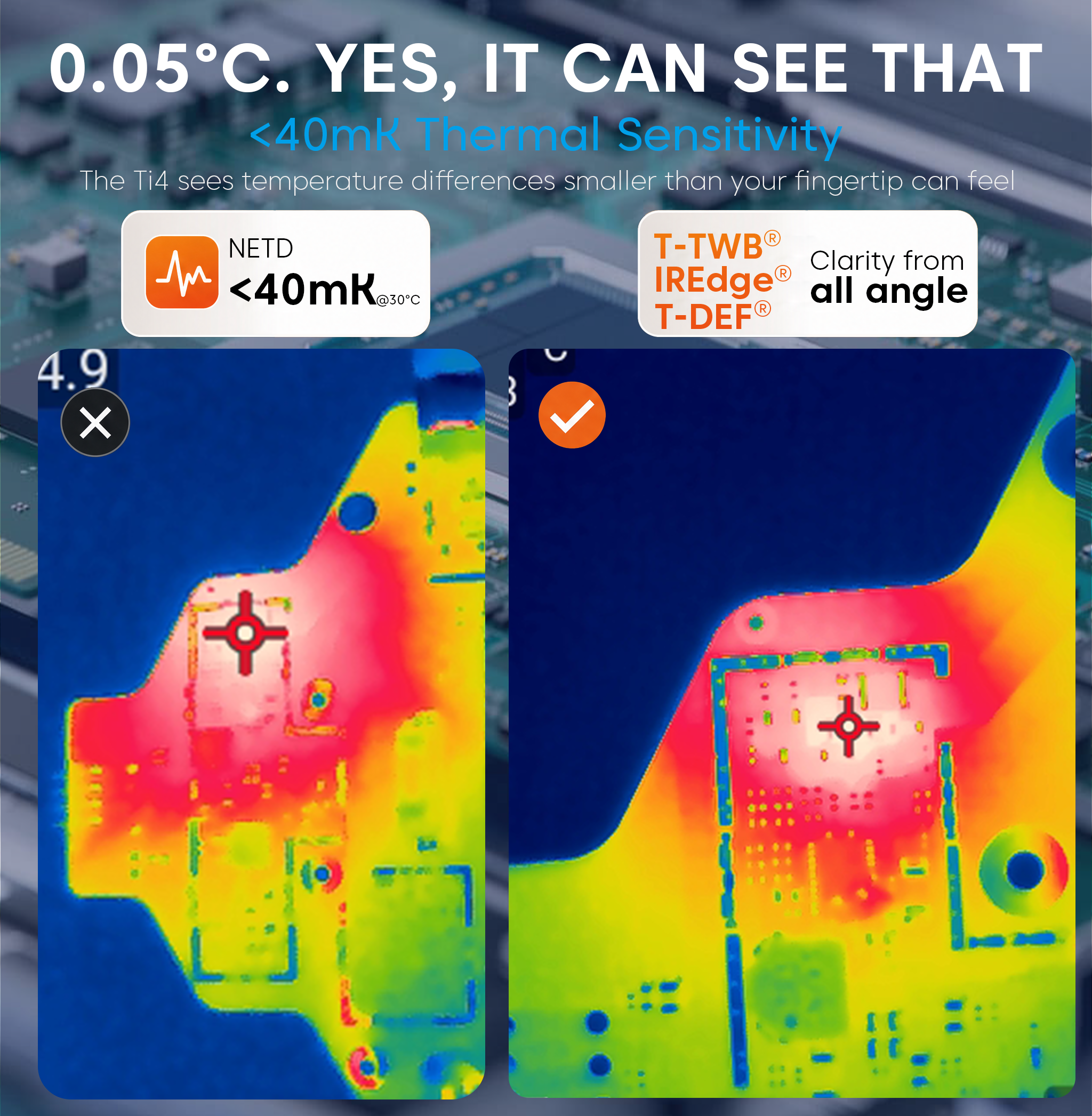

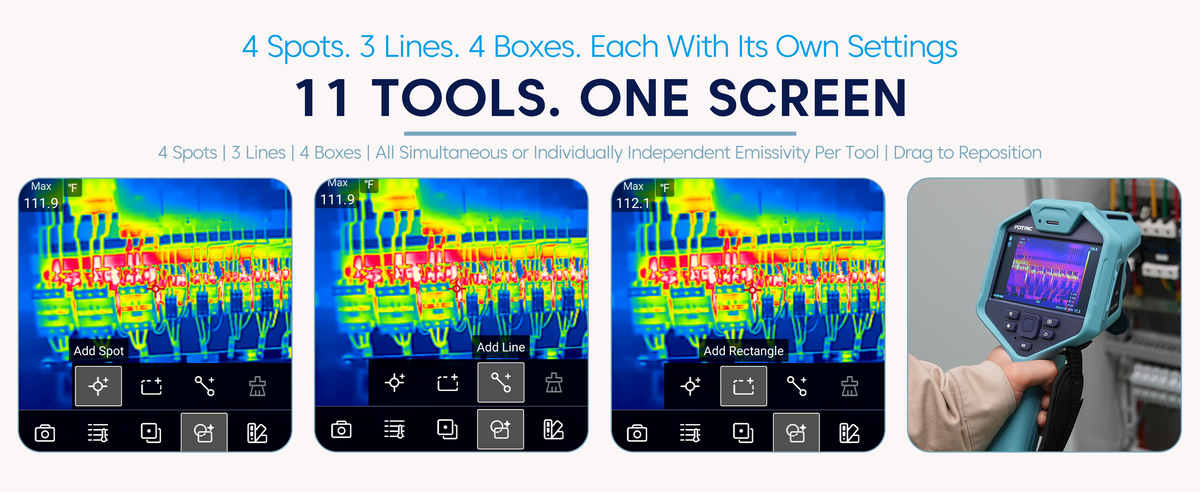

The thermal imaging camera equips IREdge contour enhancement and T-TWB histogram normalization to highlight temperature details; supports 4 spot/3 line/4 area ROI measurement, 5-inch 720P touch screen, Wi-Fi/Bluetooth/HDMI data transmission and built-in annotation tools for instant field analysis.
Heavy-duty Industrial Durability

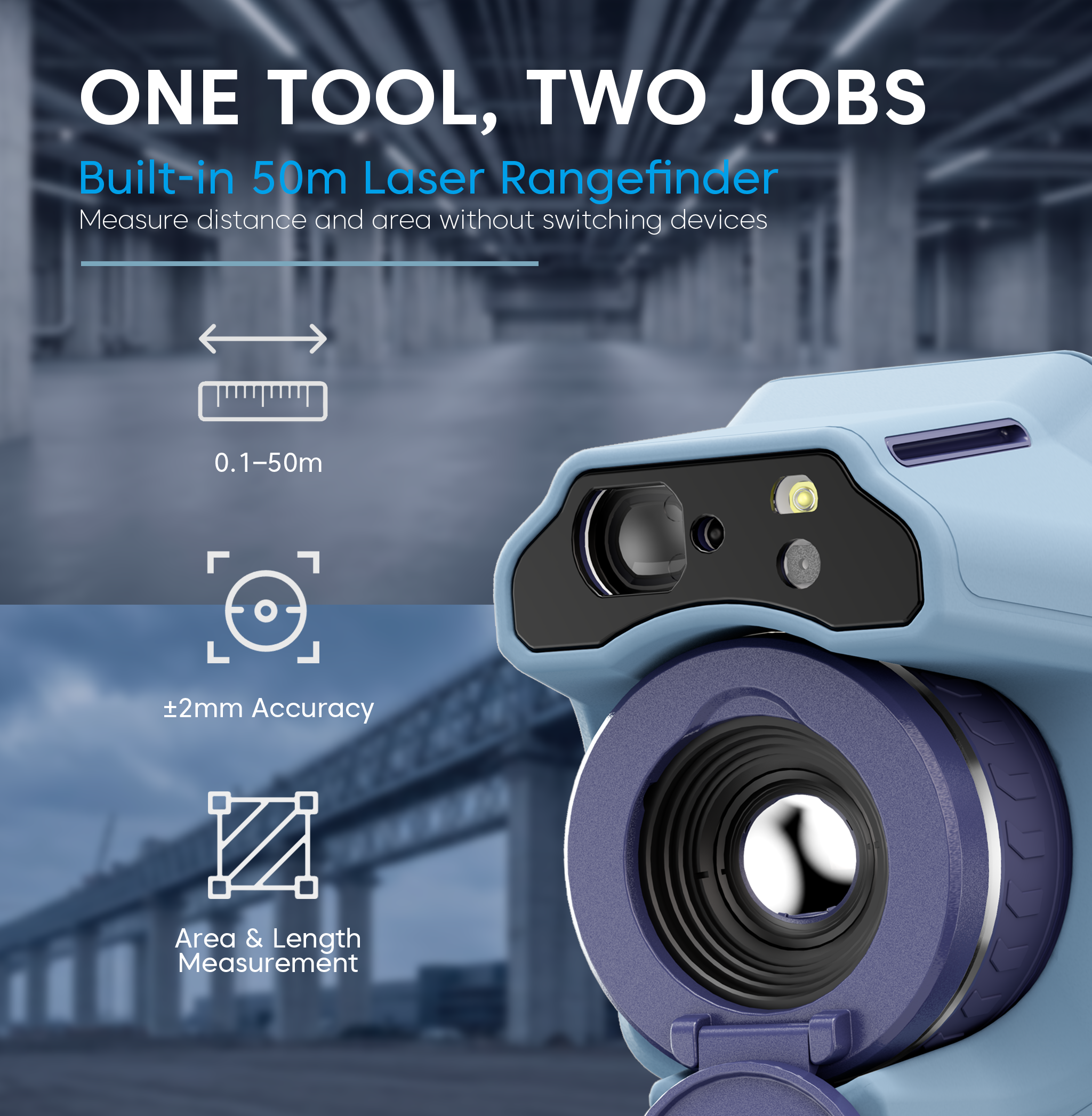

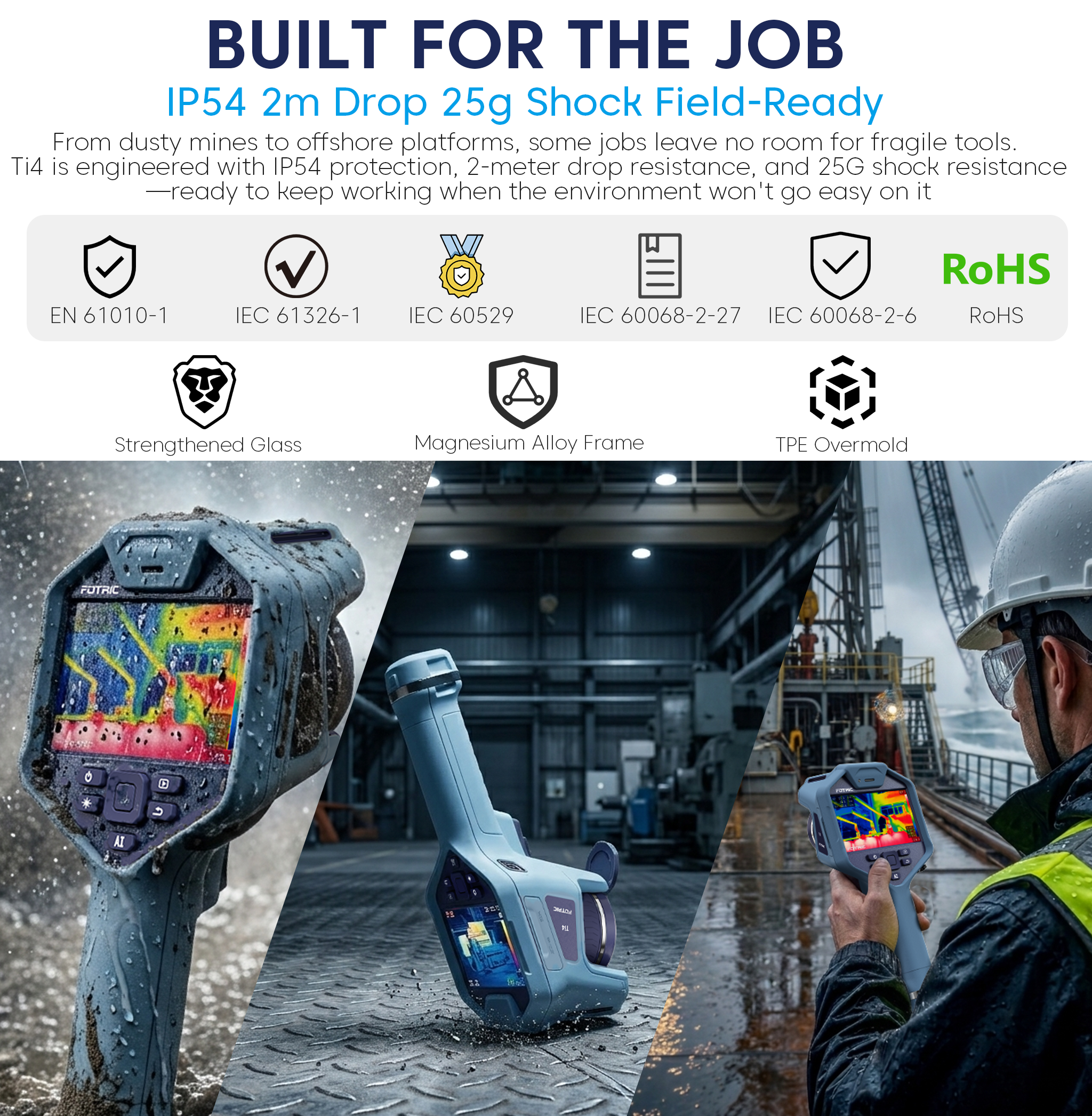

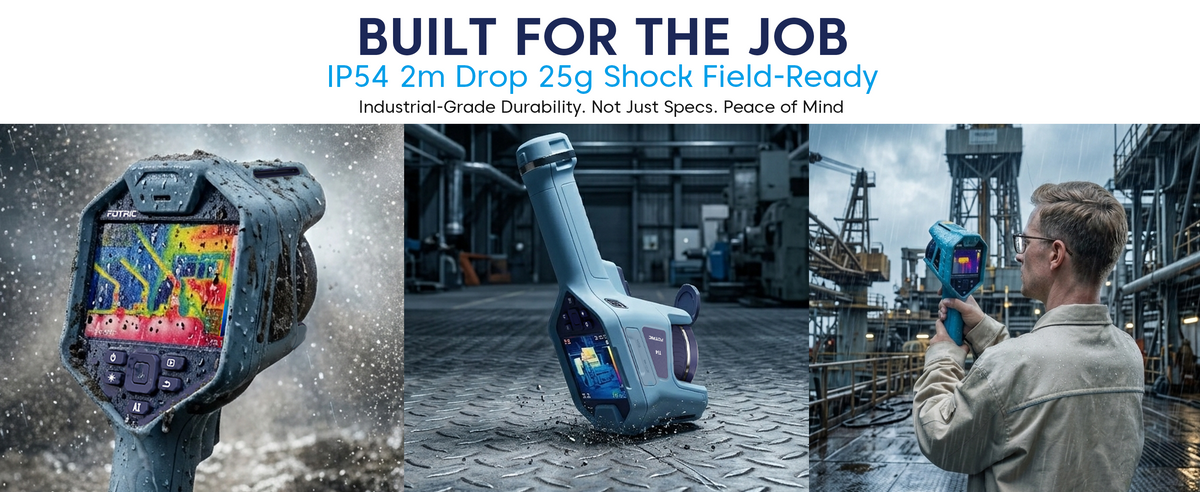

IP54 dustproof & waterproof rating, 2-meter drop impact resistance, shock and vibration resistant structure; operating temperature -4℉~122℉ with <95%RH humidity tolerance; integrated 635nm class 2 laser rangefinder (0.1~50m, d*0.01%±2mm precision) for area and length thermal loss calculation.
Complete Standard Accessory Kit
Comes with 2 rechargeable spare lithium batteries supporting ≥4 hours continuous runtime each; matched hard portable tool case, soft storage bag, 64G expandable SD card, charger dock, USB-C & Micro HDMI cables, lens cover, calibration certificate and all required installation accessories for long-term industrial field use.

Quick Quiz to Recommend 20s quiz to find your perfect camera Start Product Comparison Which one is right for you? Compare now. Compare

3-5 Days Free Shipping

30-Day Money Back

5 x 24H Support

Worry-Free Warranty

FOTRIC Ti4 Thermal Imaging Camera

$2,359.99

Frequently Asked Questions

What is the infrared resolution? Does it support Super Resolution?

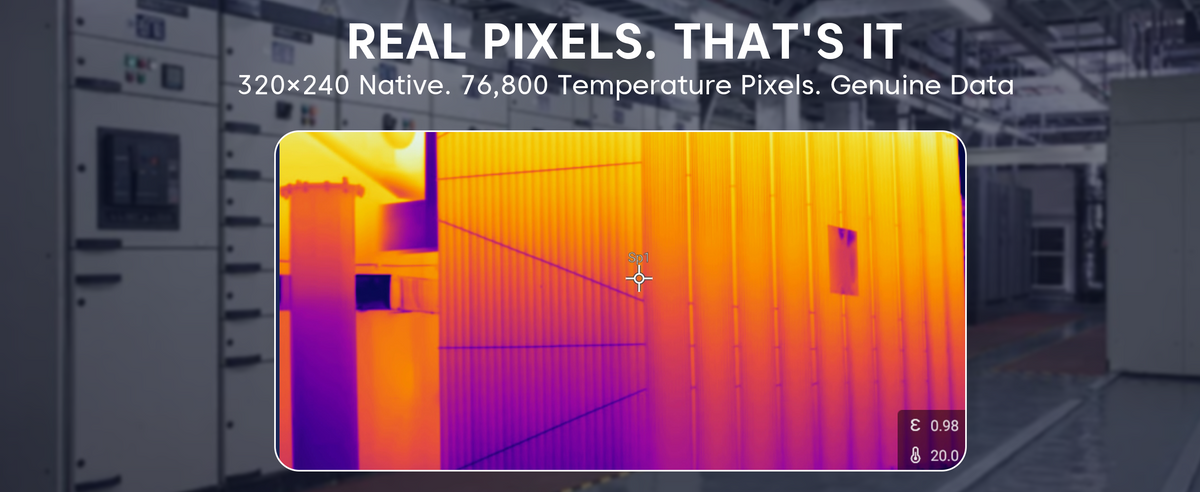

Infrared resolution: 320×240 pixels with a 17μm pixel pitch.
Super Resolution: The Ti4 specifications do not list a Super Resolution function; the camera delivers 320×240 native resolution.

What is the temperature measurement range and accuracy?

Temperature range: -20°C to 650°C
Temperature span: -20120°C / 0650°C (intelligent range selection)

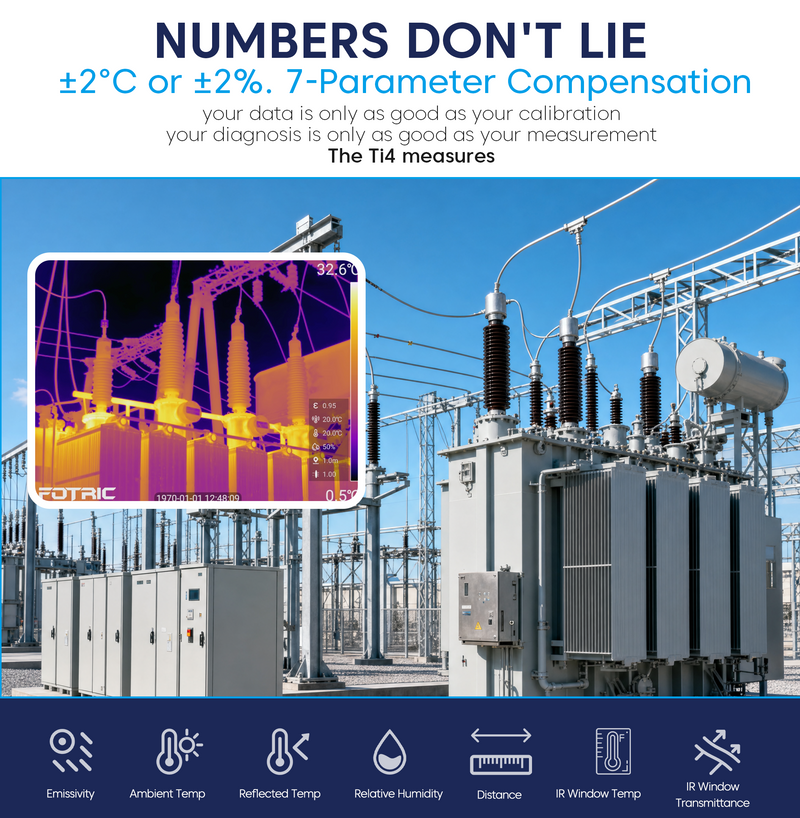

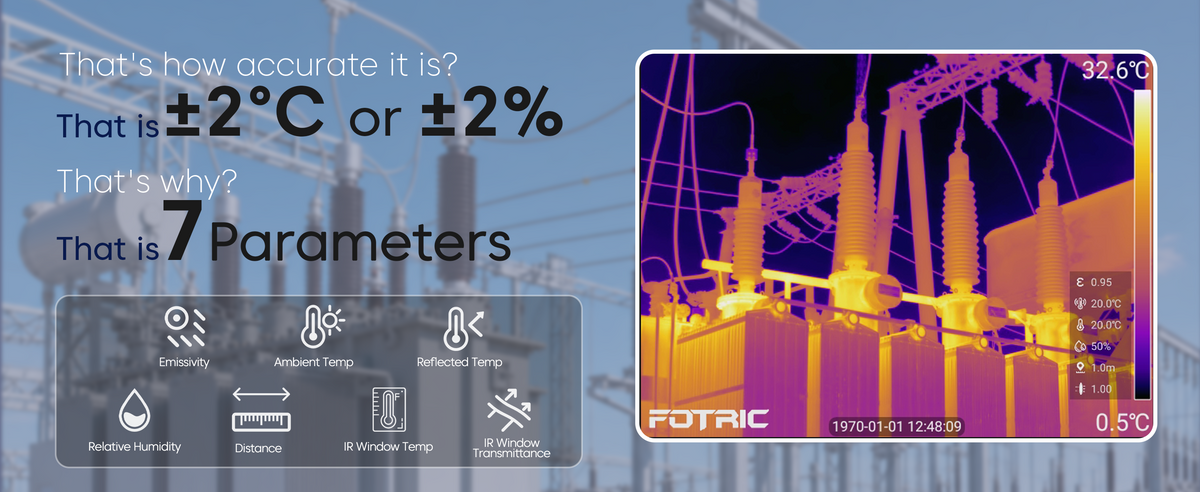

Accuracy: ±2°C or ±2%, whichever is greater (at 15~35°C ambient, target >0°C, calibrated at 1m)

What is the field of view (FOV)? What is TurboFocus®?

FOV: 44°×33°
Spatial Resolution (IFOV): 2.40mrad
Minimum imaging distance: 0.1m

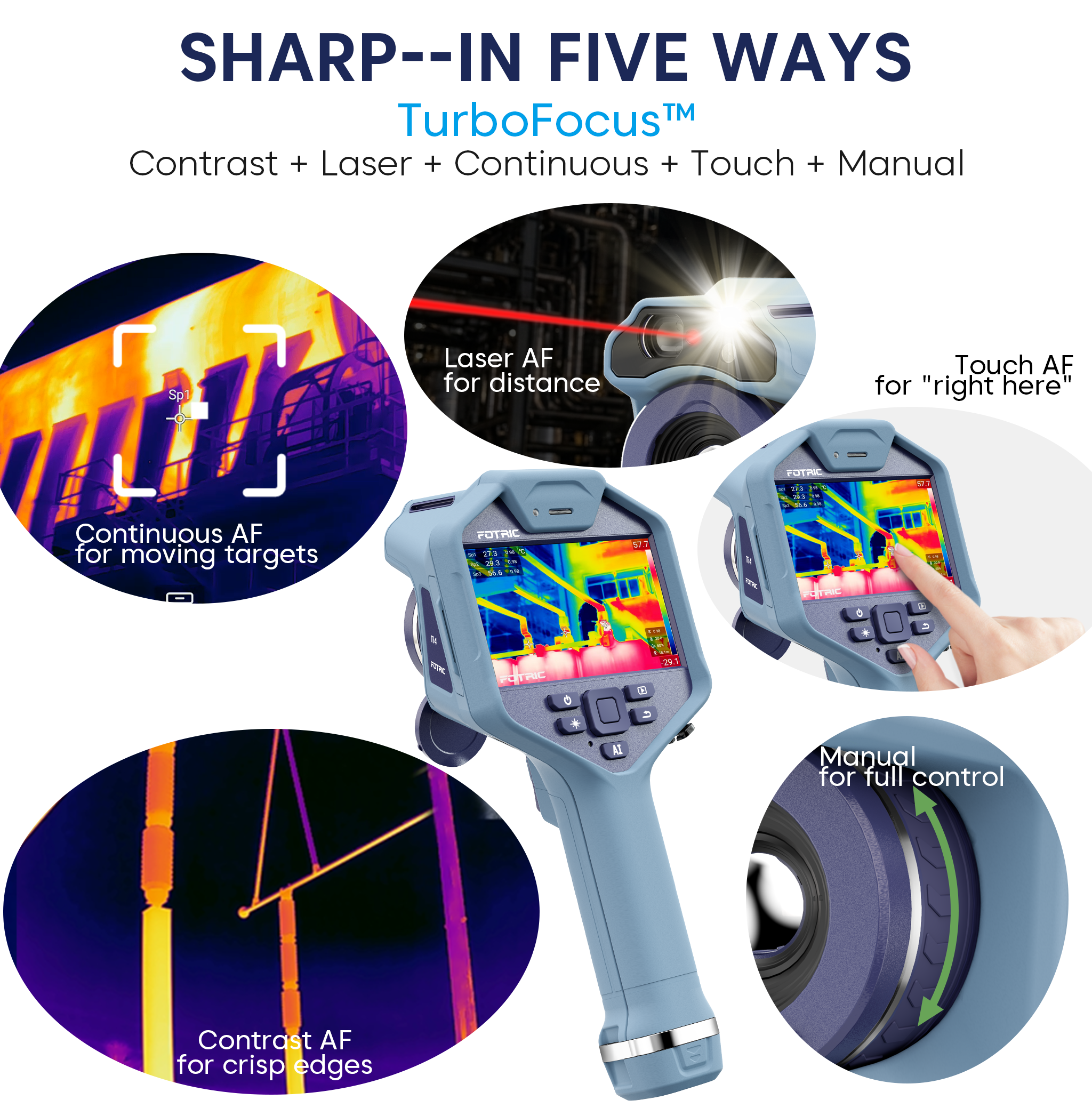

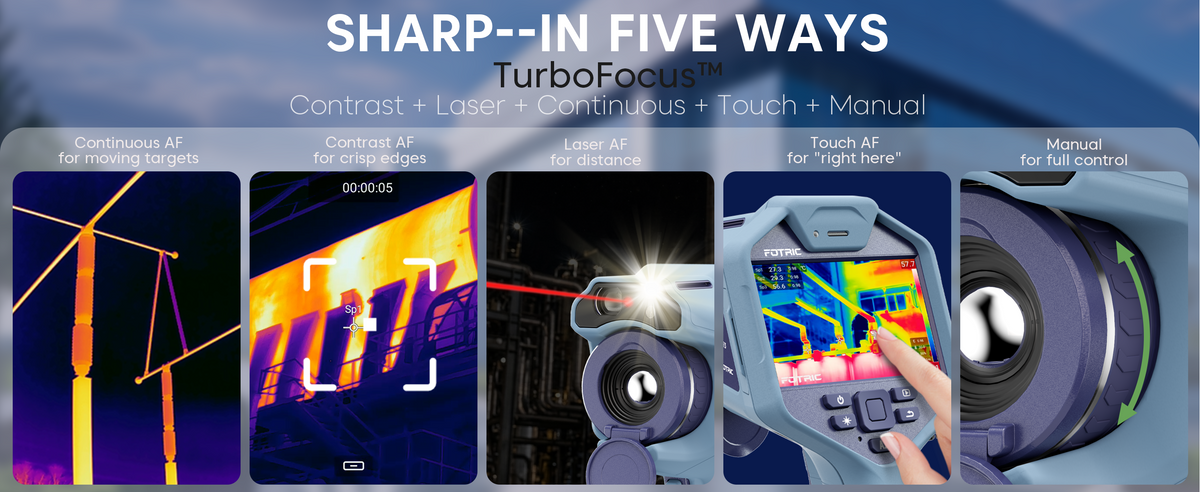

Focus: TurboFocus® intelligent focus system combining:Thermal contrast autofocusLaser-assisted autofocusContinuous autofocusTouch AFManual focus

What image modes are available?

Thermal Image — full infrared view
T-DEF® Blend Mode — combines thermal and visible images
Picture-in-Picture (PIP) — overlays thermal image on visible light
Digital Camera — standard visible light view
High Sensitivity Mode — active only when the lens is identified as a gas detection lens

How long does the battery last? Can I replace it?

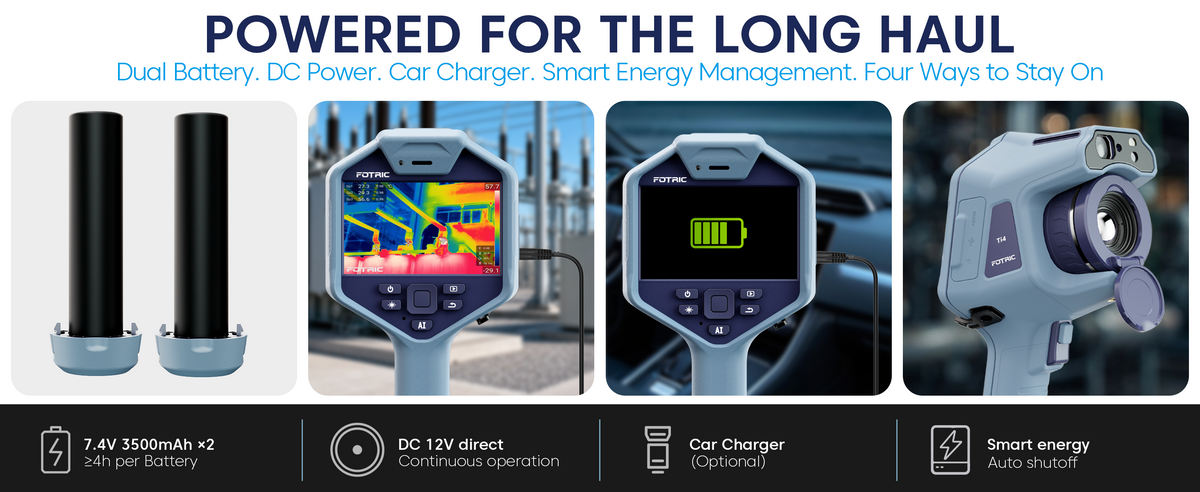

Battery: 7.4V, 3500mAh rechargeable lithium battery, field-replaceable
Operating time: ≥4 hours per battery
The standard configuration includes 2 batteries for extended field use
Comes with a two-bay battery charger with LED display

Can I analyze images on a computer, generate reports, and use time-lapse capture?

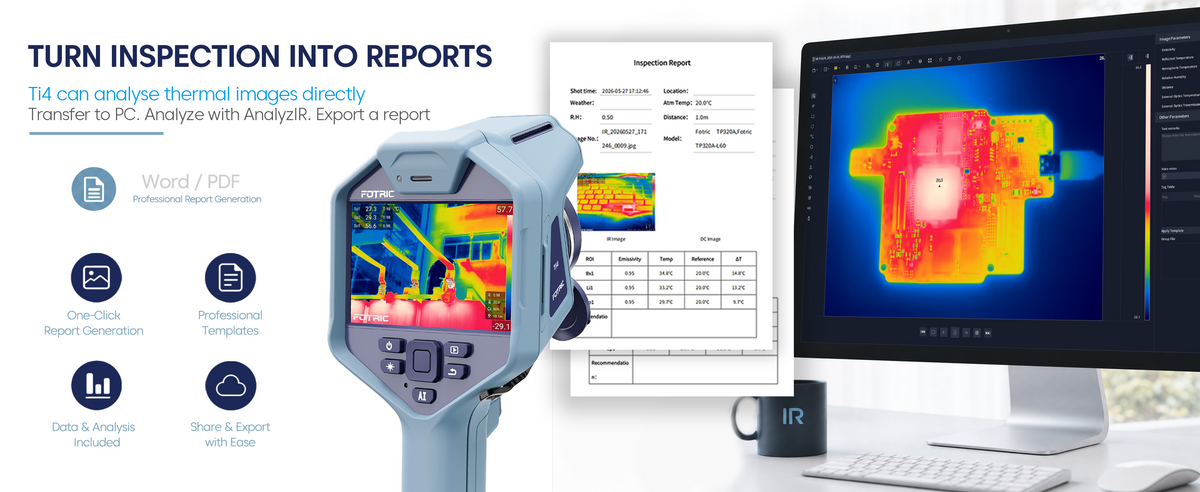

Yes. The Ti4 supports AnalyzIR® Venus professional analysis software for detailed data analysis, batch processing, and instant report generation.

Connect via USB Type-C, or view the radiometric video stream in real time through AnalyzIR
The software installs on Windows systems and also enables PC remote control of the device
